FANUC A03B A03B-0819-C165

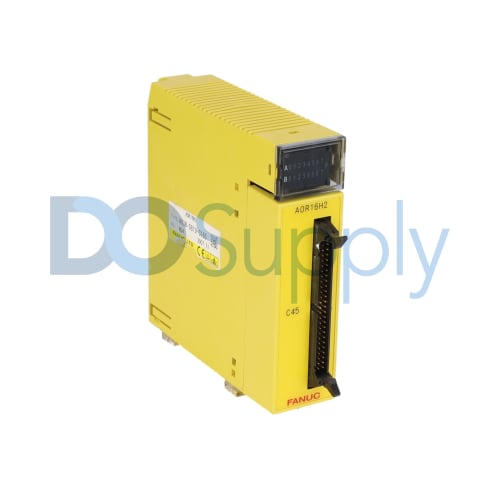

Product image is representative; revision or series may vary. Contact us to request a specific version.

A03B-0819-C165

|
Need a Specific Revision?

The A03B-0819-C165 relay output module from FANUC features 16 output points and utilizes a digital relay configuration. It is rated for operation with output voltages of 250 VAC or 30 VDC and can handle up to 2 A per point.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A03B-0819-C165

ManufacturerFANUC
Product LineA03B
Part NumberA03B-0819-C165
Weight0.56 lbs (0.26 kg)
NameRelay Output Module
Output Points16
Output TypeDigital Relay
Output Voltage250 VAC / 30 VDC
Output Current2 A per point
Contact ConfigurationSPDT (Single Pole Double Throw)
MountingDIN Rail
Terminal TypeScrew Terminal Block
Shock ResistanceUp to 150 m/s²
Vibration Resistance5 to 500 Hz, 0.5 mm amplitude
Humidity Range5% to 95% (non-condensing)
Operating Temperature Range0°C to 55°C
Storage Temperature Range-20°C to 70°C
Request a Repair

The relay output module, part number A03B-0819-C165 by FANUC, includes sixteen outputs designed for seamless control in various industrial applications. Each output is capable of handling a maximum voltage of 250 VAC or 30 VDC and supports current up to 2 A per point. This module's contact configuration is SPDT, which allows for flexible switching in control tasks.

Designed specifically for DIN rail installation, the module features a screw terminal block for secure wiring connections. In terms of durability, it can withstand shocks of up to 150 m/s² and vibrations within the range of 5 to 500 Hz, with an amplitude of 0.5 mm. The operational environment is further characterized by a humidity tolerance ranging from 5% to 95%, provided that no condensation is present.

For functional longevity, the operating temperature range is capped at 0°C to 55°C, while the storage temperature can extend from -20°C to 70°C, ensuring adaptability in various settings. The relay output module weighs only 0.1 kg, with compact dimensions measuring 3.5 cm in height, 13.0 cm in width, and 12.7 cm in depth.
