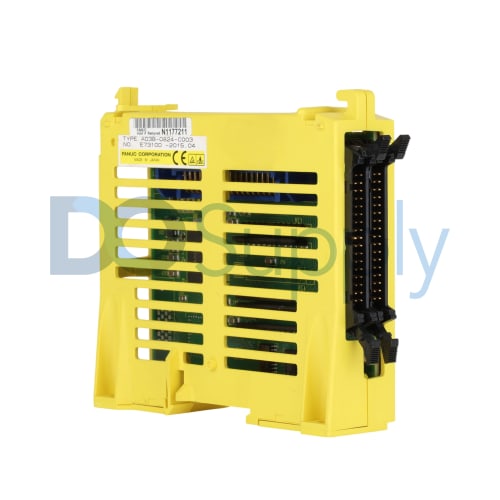

FANUC A03B A03B-0824-C003

Product image is representative; revision or series may vary. Contact us to request a specific version.

A03B-0824-C003

|
Need a Specific Revision?

The FANUC A03B-0824-C003 functions as a digital I/O module. It supports 24 digital inputs and 16 digital outputs, making it suitable for various control applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A03B-0824-C003

ManufacturerFANUC
Product LineA03B
Part NumberA03B-0824-C003
Weight0.44 lbs (0.20 kg)
ProductDigital I/O Module
Operating HumidityUp to 80% (non-condensing)
Storage HumidityUp to 80% (non-condensing)
Maximum Operating Altitude1000 meters above sea level
Maximum Storage Altitude1000 meters above sea level
Operating Temperature0 to 40 degrees Celsius
Storage Temperature0 to 50 degrees Celsius
EnvironmentClean indoor environment with no corrosive chemicals
Digital Inputs24 Inputs
Digital Outputs16 Outputs
MPG InterfaceNot Included
Connector PanelsCompatible
Request a Repair

The A03B-0824-C003 by FANUC is an essential digital I/O module. It accommodates 24 digital inputs along with 16 digital outputs, providing significant control capabilities for automation tasks. Designed to function in environments with an operating temperature range of 0 to 40 degrees Celsius, this module ensures reliable performance in typical indoor settings. For storage, it can endure temperatures from 0 to 50 degrees Celsius.

Humidity tolerance is a key feature, reaching up to 80% (non-condensing), making it suitable for various industrial conditions. Additionally, the A03B-0824-C003 can operate at altitudes of up to 1000 meters above sea level, reflecting its robust design. This module is intended for clean indoor environments, where exposure to corrosive chemicals is restricted.

While it lacks an MPG interface, it supports compatibility with various connector panels, enhancing its versatility in different setups. The material composition and engineering of the module are tailored to ensure long-term reliability in demanding applications.
