A05B-2518-C304#EMH

Need a Specific Revision?

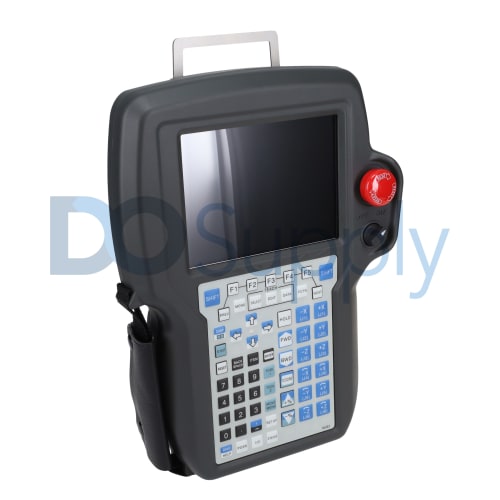

The FANUC A05B-2518-C304#EMH serves as a teach pendant, designed for precise control in robotic applications, particularly with the R30I series robots. This model features a 6.4-inch color LCD, ensuring ease of use and clear visibility during programming tasks.

Ships Tomorrow, May 23.

2 Year DO Supply Warranty

In Stock

Ships from Raleigh, NC

Learn more

Warranty

We sell industrial automation parts backed by our 2-year DO Supply Warranty.
Shipping

Same-day domestic and expedited international shipping with UPS, FedEx, DHL, and more.
Payment Methods

AMEX, Visa, MasterCard, Discover, wire transfer, and more, plus flexible payment plans.
Repairs & Exchanges

Repair and exchange services for all existing automation products.
Reseller Options

Drop shipping, blind shipping, and account shipping with no extra fees.

Technical specifications for A05B-2518-C304#EMH

Manufacturer	FANUC
Series	A05B
Part Number	A05B-2518-C304#EMH
Product	Teach Pendant
Robot Control Applications	Supported
Compatible Robots	R30I Robots
Connector	20-Pin Male Connector
Material Handling Applications	Supported
Graphics	Color Graphics
Screen Size	6.4 Inches
LCD	Included
Approximate Dimensions For Compatible Teach Pendants	300 x 250 x 80 mm
Compatible Teach Pendant Input Type	Up to 100,000 times
CE Mark	Available
Approximate Shipping Weight	3 Pounds

Request a Repair

The A05B-2518-C304#EMH teach pendant from FANUC is a specialized interface for operating robotic systems. It’s engineered to work primarily with R30I robots, facilitating complex programming and control tasks in various environments. Users benefit from a clear view provided by the color graphics displayed on the 6.4-inch LCD screen, which contributes to efficient programming processes.

This device is designed to connect thoroughly with a 20-pin male connector to ensure stable communications between the pendant and the robotic systems. Its structure supports material handling applications, extending its usefulness across different robotic implementations. The pendant has proven durable design and can handle up to 100,000 input operations, making it reliable for frequent use.

With approximate dimensions of 300 mm in width, 250 mm in height, and 80 mm in depth, this teach pendant is compact enough to fit comfortably within operational spaces. Weighing about 3 pounds, it can be easily handled by operators. Additionally, this unit comes with a CE mark, indicating compliance with relevant safety and health standards applicable in certain regions.
