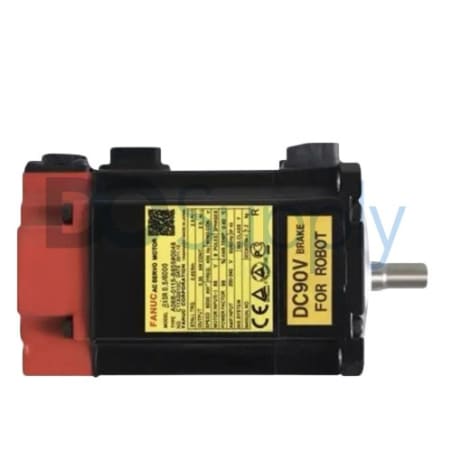

FANUC A06B A06B-0115-B855#0048

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-0115-B855#0048

|
Need a Specific Revision?

FANUC's A06B-0115-B855#0048 is a highly capable servo motor engineered for precision applications in both CNC and robotic control systems. Its operation is optimized at a frequency of 400 Hz, and it runs at a voltage of 90V, achieving a maximum speed of 6000 RPM.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-0115-B855#0048

ManufacturerFANUC
Product LineA06B
Part NumberA06B-0115-B855#0048
Weight2.63 lbs (1.19 kg)
Motor TypeServo Motor
Frequency400 Hz
Voltage90V
Speed6000 RPM
CNC ApplicationsSupported
Robot Control ApplicationsSupported
Operating Temperature-10 to 40 degrees Celsius
Maximum Vibration5G
Maximum Altitude1000 Meters Above Sea Level
BrakeIncluded
Request a Repair

The A06B-0115-B855#0048 servo motor from FANUC is designed to deliver precision for demanding applications in automation. Rated at a frequency of 400 Hz and an operating voltage of 90V, this motor is capable of spinning at impressive speeds of up to 6000 RPM. Such performance makes it suitable for tasks associated with CNC operations and robotic controls.

Engineered for adaptability, it can perform efficiently within an ambient temperature span of -10 to 40 degrees Celsius. The motor is also rated to endure vibration levels of 5G, allowing it to maintain reliability in various environments. Furthermore, it can operate effectively at altitudes reaching 1000 meters above sea level, broadening its usability in diverse installations. To enhance control, this servo motor includes a built-in brake mechanism, ensuring precise handling during operations.
