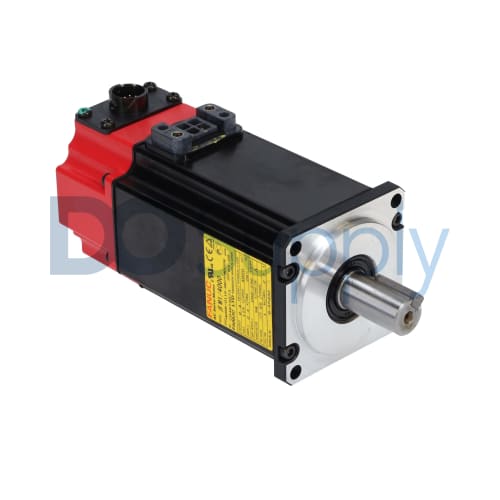

FANUC A06B A06B-0116-B075

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-0116-B075

|
Need a Specific Revision?

The FANUC A06B-0116-B075 is an AC servo module engineered for precise control in motor applications. With an output power rating of 0.4 kW, it operates at a voltage of 115 V and a frequency of 267 Hz, providing efficient performance.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-0116-B075

ManufacturerFANUC
Product LineA06B
Part NumberA06B-0116-B075
Weight3.50 lbs (1.59 kg)
ProductAC Servo Module
Output Power0.4 kW
Voltage Rating115 V
Current Rating2.3 A
Frequency267 Hz
Speed4000 RPM
Insulation ClassF
Number of Phases3
Excitation ModePermanent Magnet Field
Inverter Voltage200-240 V
Stall Torque1 Nm
Stall Current2.7 A
Request a Repair

The A06B-0116-B075 AC servo module by FANUC is designed for applications requiring reliable and precise motion control. This compact unit delivers an output power of 0.4 kW, operating effectively at a nominal voltage of 115 V. Suitable for industrial environments, it operates at a frequency of 267 Hz, ensuring optimal performance during operation.

The servo module supports a maximum speed of 4000 RPM, making it well-suited for applications requiring rapid movement and responsiveness. The device utilizes a permanent magnet field as its excitation mode, optimizing efficiency while reducing energy losses. Operating in a 3-phase configuration further enhances its performance, providing consistent torque and speed under various load conditions.

When connected to an inverter, the A06B-0116-B075 can accommodate voltage levels between 200 and 240 V. This feature contributes to its versatility in different setups. It generates a stall torque of 1 Nm, which is essential for maintaining performance during load changes. The stall current rating is determined at 2.7 A, a critical parameter to monitor for ensuring the module operates within safe limits.

Built with a Class F insulation rating, this servo module can withstand elevated temperatures, contributing to its reliability in demanding applications. With its robust design and technical specifications, the FANUC A06B-0116-B075 AC servo module caters to intricate motor control needs in various industrial settings.
