FANUC A06B A06B-0153-B188

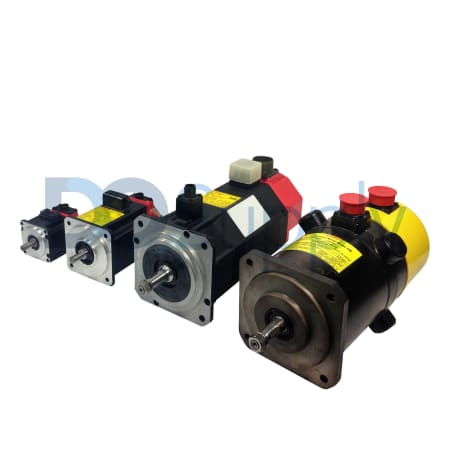

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-0153-B188

|
Need a Specific Revision?

The A06B-0153-B188 from FANUC is an AC servo motor with a straight shaft, designed for various CNC applications. It is equipped with a brake and operates at a speed of 3000 RPM, producing an output power of 4.8 kW.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-0153-B188

ManufacturerFANUC
Product LineA06B
Part NumberA06B-0153-B188
Weight125.00 lbs (56.70 kg)
MotorAC Servo Motor
ShaftStraight
BrakeIncluded
CNC ApplicationsSupported
Speed3000 RPM
Output Power4.8 kW
Operating Temperature-10 to 40 degrees Celsius
Maximum Vibration5G
Maximum Altitude1000 Meters Above Sea Level
EncoderA1000 Encoder
Request a Repair

FANUC's A06B-0153-B188 is a high-performance AC servo motor specifically crafted to meet the demands of CNC applications. This motor comes with a straight shaft and integrates a brake for enhanced control and functionality. Its design allows it to maintain a steady speed of 3000 RPM, delivering significant output power rated at 4.8 kW.

The motor operates efficiently within a temperature span of -10 degrees to 40 degrees Celsius, making it suitable for a variety of industrial environments. With a maximum vibration resilience of 5G, it ensures reliable performance even under challenging conditions. Additionally, the A06B-0153-B188 can operate effectively at altitudes reaching 1000 meters without performance loss.

Equipped with an A1000 encoder, this motor optimally supports precision control, further enhancing its application in high-accuracy environments. The combination of its features, including robust construction and reliability under various conditions, makes the A06B-0153-B188 a viable option for users in need of a dependable AC servo motor.
