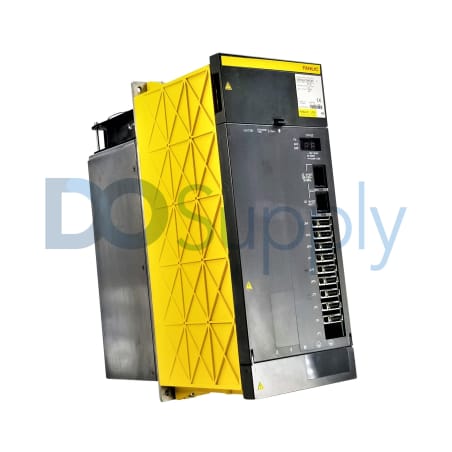

FANUC A06B A06B-6088-H230#H500

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-6088-H230#H500

|
Need a Specific Revision?

The FANUC A06B-6088-H230#H500 is a spindle amplifier designed specifically for CNC systems. It delivers an output power of 35 kW and operates within a voltage range of 283 to 325 VAC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-6088-H230#H500

ManufacturerFANUC
Product TypeSpindle Amplifier (Spindle Drive)
Product LineA06B
Part NumberA06B-6088-H230#H500
Weight30.00 lbs (13.61 kg)
Rated Output Power35 kW
Input Voltage283-325 VAC
Rated Input Current133 A
Frequency50/60 Hz
ApplicationCNC Systems
Cooling MethodAir Cooled
MountingVertical/Wall-mounted
Protection FeaturesOverload, Overcurrent, Overvoltage Protection
Operating Temperature0°C to 55°C
Request a Repair

The FANUC A06B-6088-H230#H500 is a spindle amplifier that functions effectively in CNC applications. With a robust rated output power of 35 kW, this unit is designed to manage demanding tasks efficiently within machining setups. It operates at an input voltage between 283 and 325 VAC. With a rated input current of 133 A, it is well-suited for heavy-duty spindle control operations.

This spindle drive unit supports both 50 Hz and 60 Hz frequencies, making it adaptable to various electrical systems. The drive weighs 10.50 kg, which aids in the installation process. It can be mounted vertically or on walls, providing flexibility depending on the specific layout of your equipment.

An air-cooled setup facilitates cooling, ensuring that the unit maintains optimal operating temperatures. The A06B-6088-H230#H500 is equipped with essential protection features, including overload, overcurrent, and overvoltage safeguards. Operating within a temperature range of 0°C to 55°C, it is designed to withstand diverse industrial conditions.
