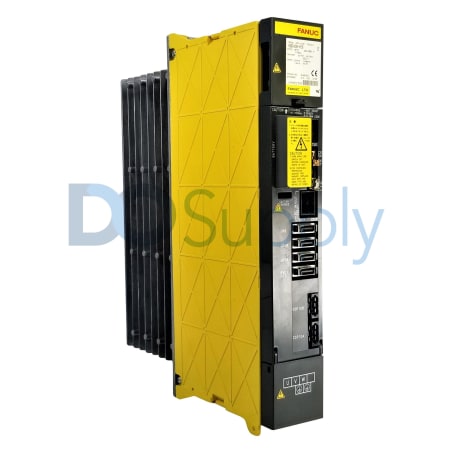

FANUC A06B A06B-6096-H105

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-6096-H105

|
Need a Specific Revision?

The FANUC A06B-6096-H105 servo drive is designed for precise control in CNC applications. With an output power capacity of 4.75 kW, it operates within an input voltage range of 283 to 325 volts.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-6096-H105

ManufacturerFANUC
Product LineA06B
Part NumberA06B-6096-H105
Weight11.00 lbs (4.99 kg)
ProductServo Drive
Output Power4.75 kW
CNC ApplicationsSupported
Input Voltage283-325V
Output Voltage230V
L-Axis Output Current18.7 Amps
Operating Temperature0 to 40 degrees Celsius
Maximum Vibration5G
Maximum Altitude1000 Meters Above Sea Level
Request a Repair

The A06B-6096-H105 model from FANUC represents a servo drive integral to various CNC applications. This component supports an output power rating of 4.75 kW, essential for driving motors efficiently. The drive operates on an input voltage ranging from 283 to 325 volts, supplying an output voltage of 230, ensuring compatibility with numerous systems and setups.

Current handling capabilities include a maximum L-axis output current of 18.7 amps, allowing it to manage substantial loads effectively. The device's approximate weight of 9.15 pounds facilitates its installation in various configurations without excessive bulk.

This servo drive is designed to function optimally within a 0 to 40-degree Celsius temperature, making it suitable for standard operational environments. The unit also demonstrated remarkable resilience, capable of withstanding vibrations up to 5G and effective performance at 1000 meters above sea level altitudes. These features enhance its reliability and versatility in diverse industrial settings.
