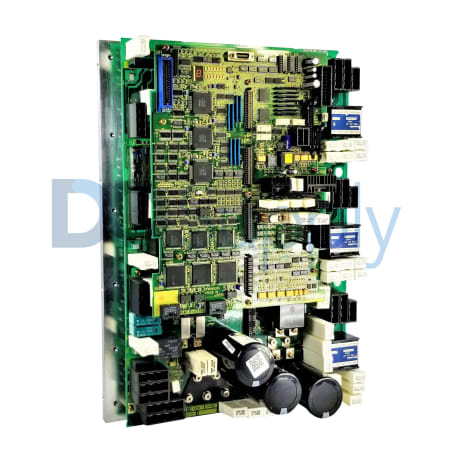

FANUC A06B A06B-6100-H001

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-6100-H001

|
Need a Specific Revision?

The FANUC A06B-6100-H001 functions as a servo amplifier with the capacity for controlling 6 axes. It operates effectively between 0 and 40 degrees Celsius and is designed for use in various environments.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-6100-H001

ManufacturerFANUC
Product LineA06B
Part NumberA06B-6100-H001
Weight35.00 lbs (15.88 kg)
ProductServo Amplifier
Number of Axes6 Axes
Operating Temperature0 to 40 degrees Celsius
Maximum Vibration5G
Maximum Altitude1000 Meters Above Sea Level
Input Voltage200-230V
Output Voltage230V Maximum
Voltage Type3-Phase AC Voltage
Frequency50/60 Hz
CNC ApplicationsSupported
Robotics ApplicationsSupported
Request a Repair

The FANUC A06B-6100-H001 is a pivotal component in sophisticated automation systems as a servo amplifier capable of handling six axes simultaneously. This unit requires an input voltage between 200 and 230 volts and functions effectively within a 3-phase AC voltage configuration. It provides a maximum output voltage of 230 volts, making it suitable for various applications. Designed for high reliability, it operates efficiently in temperatures ranging from 0 to 40 degrees Celsius.

This servo amplifier is also built to withstand external challenges, with a maximum permissible vibration rating of 5G, ensuring stability during operation. Furthermore, it can function at altitudes up to 1000 meters above sea level, supporting its use in diverse geographical locations. Both CNC and robotic applications benefit from the capabilities of the A06B-6100-H001, highlighting its adaptability in the field of automation. Operating frequencies are adaptable, accommodating 50/60 Hz for broader compatibility with existing systems.
