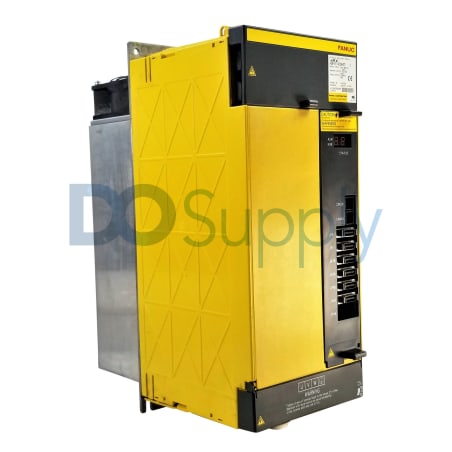

FANUC A06B A06B-6111-H030#H570

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-6111-H030#H570

|
Need a Specific Revision?

The A06B-6111-H030#H570, a spindle amplifier module from FANUC's A06B series, provides precise control for demanding applications. It features a wide range of output voltage and a robust rated output current.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-6111-H030#H570

ManufacturerFANUC
Product LineA06B
Part NumberA06B-6111-H030#H570
Weight20.00 lbs (9.07 kg)
ModuleSpindle Amplifier Module
Output Voltage200-240 VAC
Minimum Ambient Operating Temperature0°C
Rated Output Current133A
Output Frequency Range0-600 Hz (50Hz Input); 0-720 Hz (60Hz Input)
Input Voltage283-339 VDC
Rated Input Power35 kW
Input Frequency50/60 Hz
Ambient Humidity90% RH or less (No condensation)
Maximum Ambient Operating Temperature55°C
Request a Repair

FANUC's A06B-6111-H030#H570 is designed as a spindle amplifier module crucial for high-performance motor control. It operates effectively with an output voltage ranging from 200 to 240 VAC and delivers a rated output current of 133A. The input voltage for this module is specified between 283 and 339 VDC, allowing it to perform efficiently in various settings.

The A06B-6111-H030#H570 module's output frequency caters to diverse requirements, providing frequencies from 0 to 600 Hz with a 50 Hz input and extending to 0 to 720 Hz with a 60 Hz input. Such capabilities enable flexibility across applications requiring different speed controls.

Operating within defined environmental conditions is essential. The A06B-6111-H030#H570 has a minimum ambient operating temperature setting of 0°C and is rated for a maximum of 55°C, ensuring reliability under varying operating temperatures. Additionally, it can function in environments with humidity levels not exceeding 90% RH without condensation, suitable for many industrial environments.
