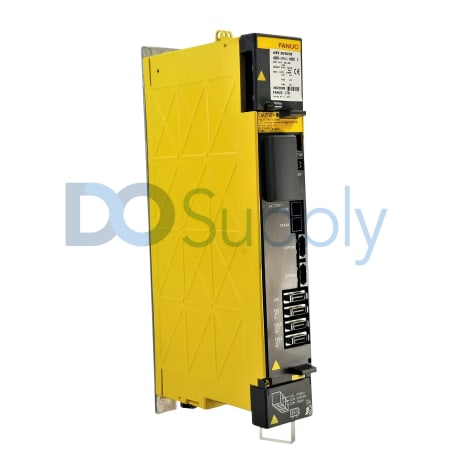

FANUC A06B A06B-6114-H303

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-6114-H303

|
Need a Specific Revision?

The FANUC A06B-6114-H303 is a servo amplifier module, catering to precise motion control requirements. It supports an output frequency range from 0.1 to 800 Hz and operates efficiently with a rated input power of 7.5 kW.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-6114-H303

ManufacturerFANUC
Product LineA06B
Part NumberA06B-6114-H303
Weight15.00 lbs (6.80 kg)
NameServo Amplifier Module
Rated Output Current6.5 A (L-axis), 6.5 A (M-axis), 6.5 A (N-axis)
Output Frequency Range0.1 - 800 Hz
Input Voltage283-339 VDC
Rated Input Power7.5 kW
Input Frequency50/60 Hz
Ambient Humidity90% RH or less (No condensation)
Max. Ambient Operating Temp.55°C
Output Voltage200-240 VAC
Min. Ambient Operating Temp.0°C
Max. Output Current20 A
Max. Output Power30 kW
Request a Repair

The model A06B-6114-H303 by FANUC is a specialized servo amplifier module to enhance motor control mechanisms. It provides a rated output current of 6.5 A for each of its axes: L, M, and N. It operates within an input voltage range of 283 to 339 VDC. This module is capable of efficient performance in various industrial settings.

The device is engineered with a realistic output frequency span from 0.1 to 800 Hz, making it suitable for versatile applications. The rated input power sits at 7.5 kW, ensuring adequate energy for demanding tasks, while input frequency compliance is maintained at 50/60 Hz. Regarding environmental conditions, it can manage ambient humidity levels up to 90% RH without condensation, operating effectively between 0°C and 55°C.

Regarding electrical performance, the module handles output voltages ranging from 200 to 240 VAC. It can achieve a maximum output current of 20 A, contributing up to 30 kW of output power. The amplifier module weighs 2.6 kg (5.73 lbs.) and is compactly sized, measuring 195 x 300 x 220 mm, facilitating easy integration into existing systems.
