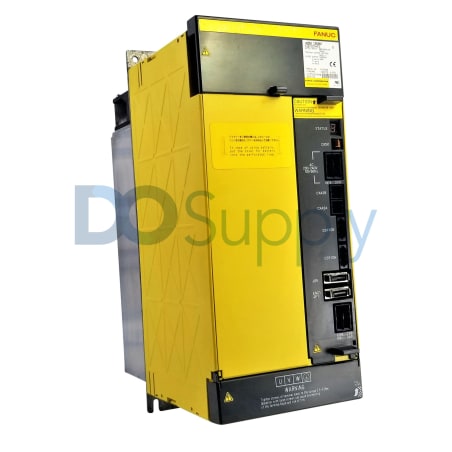

FANUC A06B A06B-6127-H106

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-6127-H106

|
Need a Specific Revision?

The A06B-6127-H106 from FANUC is a specialized servo amplifier module operating within a voltage class of 400V. This component is designed for environments where the ambient temperature ranges from 0 to 55°C, ensuring stable performance.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-6127-H106

ManufacturerFANUC
Product LineA06B
Part NumberA06B-6127-H106
Weight18.00 lbs (8.16 kg)
NameServo Amplifier Module
Ambient Storage Temperature-20 to 60°C
HumidityNormally 90% RH or below and condensation free
Operational VibrationBelow 0.5G
Voltage Class400V
Main Power Supply VoltageThree-phase 400 VAC to 480 VAC
Power Supply Voltage for the ControlSingle-phase 200 VAC to 240 VAC
Allowable Voltage Deviation-15% to +10% (including voltage variation due to load)
Instantaneous Power Failure Guarantee Time3 ms
Power Frequency50/60 Hz, ±1 Hz
Number of Axis Amplifier1
Rated Output Current58 A (rms)
Nominal Current Limit180 A (peak)
Ambient Operational Temperature0 to 55°C
Request a Repair

The FANUC A06B-6127-H106 functions as a servo amplifier module crucial for optimal performance in automated systems. Designed to operate within a robust voltage class of 400V, this module features a main power supply range of 400 VAC to 480 VAC in a three-phase configuration, along with a control voltage capacity of 200 VAC to 240 VAC in single-phase. The allowable voltage deviation ranges from -15% to +10%, accounting for variations induced by load changes.

The rated output current is capped at 58 amperes (rms), while the peak nominal current limit can reach up to 180 amperes. This wide range supports diverse operational requirements, particularly in demanding applications. To maintain stability, the amplifier can operate effectively in ambient conditions with temperatures from 0°C to 55°C and can be stored in temperatures from -20°C to 60°C.

Its weight is recorded at 10.7 kilograms, which adds to its manageable design for installation. With capabilities to endure operational vibrations below 0.5G and humidity levels typically at 90% RH or lower without condensation, the A06B-6127-H106 is suitable for use in various environments. Additionally, it offers an instantaneous power failure guarantee time of only three milliseconds, ensuring the integrity of performance during power interruptions. The power frequency specification operates effectively at 50 or 60 Hz, with a permissible variation of ±1 Hz.
