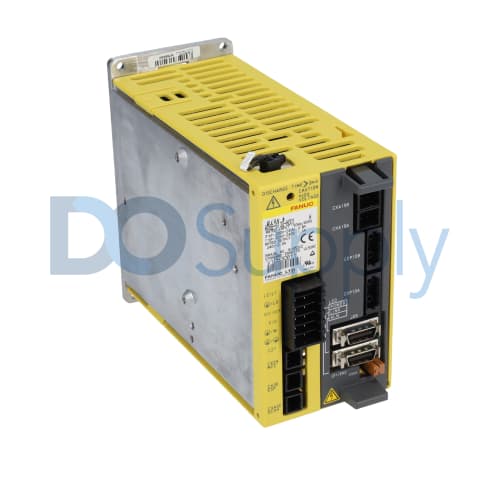

FANUC A06B A06B-6130-H001

Product image is representative; revision or series may vary. Contact us to request a specific version.

A06B-6130-H001

|
Need a Specific Revision?

FANUC's A06B-6130-H001 model is a servo drive amplifier suitable for CNC applications. Operating at voltages ranging from 200 to 240 volts, this unit is designed to function effectively within a frequency of 50 to 60 Hz.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A06B-6130-H001

ManufacturerFANUC
Product LineA06B
Part NumberA06B-6130-H001
Weight2.81 lbs (1.28 kg)
ProductServo Drive Amplifier
Insulation ClassH
Number of Phases3
Voltage200V-240V
Operating Frequency50/60 Hz
Current0.5 A
Output Voltage240 V
Output Current0.9 A
UseCNC
Maximum Operating Humidity80% RH (without condensation)
Maximum Storage Humidity80% RH (without condensation)
Maximum Operating Altitude1000 meters above sea level (without derating)
Maximum Storage Altitude1000 meters above sea level
Request a Repair

The A06B-6130-H001 servo drive amplifier by FANUC is engineered for reliable operation in CNC environments. This model supports a voltage input range of 200 to 240 volts and operates at a frequency of either 50 or 60 Hz. It has a rated current of 0.5 A and provides an output current of up to 0.9 A. With its insulation classified as H, it is built to withstand demanding conditions.

Weighing 12 lbs, the design facilitates installation in various settings. This device is robust, capable of functioning in environments with humidity levels reaching up to 80% relative humidity without the risk of condensation affecting its performance. When it comes to altitude, the A06B-6130-H001 can operate effectively up to 1000 meters above sea level, ensuring reliability in a variety of geographic conditions.

Whether for use in precision machining applications or other industrial tasks, this amplifier's specifications demonstrate its capacity to operate under a range of challenging conditions, making it a suitable component in automated systems.
