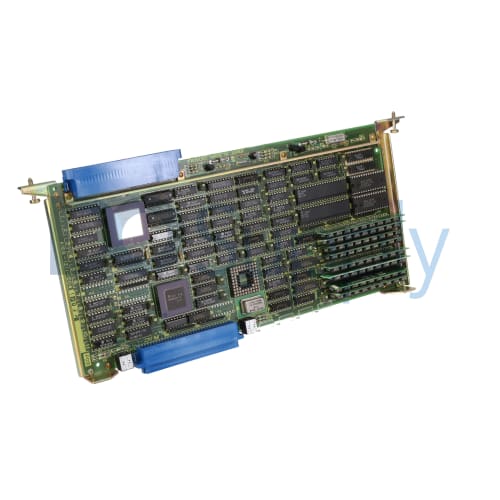

FANUC Series 16 A16B-1211-0041

Product image is representative; revision or series may vary. Contact us to request a specific version.

A16B-1211-0041

|
Need a Specific Revision?

The A16B-1211-0041 memory module from FANUC's Series 16 is designed to provide efficient Random Access Memory (RAM) functionality. With a memory capacity of 1 megabyte, it enables operations in robotic controllers.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A16B-1211-0041

ManufacturerFANUC
Product TypeMemory Module Board
Product LineSeries 16
Part NumberA16B-1211-0041
Weight1.31 lbs (0.60 kg)
Memory TypeRandom Access Memory (RAM)
Memory Capacity1 megabyte
Status Indicator TypeLED indicators
Communication PortRS-232C port
Number of Controlled AxesUp to 6 axes
Ambient Operating Temperature0 to 45°C (in a non-condensing environment)
Vibration Resistance0.5G or less
Humidity Tolerance75% to 95% relative humidity (without condensation)
CompatibilityFANUC R Model H robotic controllers
Request a Repair

The FANUC A16B-1211-0041 serves as a memory module board, facilitating essential Random Access Memory (RAM) needs. This component offers a memory capacity of 1 megabyte, crucial for various functions in industrial applications and is particularly suited for use with FANUC R Model H robotic controllers.

Weighing in at 1.3 pounds (0.58 kilograms), the module has compact dimensions of 6 inches tall, 2 inches wide, and 1 inch deep, making it easy to integrate into existing setups. The unit features LED indicators which provide a quick visual status update on operation, ensuring ease of monitoring. Communication is facilitated through an RS-232C port, allowing for efficient connectivity.

Under operational conditions, the A16B-1211-0041 has a recommended temperature range of 0 to 45°C in non-condensing environments, ensuring reliable performance. It can withstand humidity levels ranging from 75% to 95%, making it suitable for various manufacturing contexts. Additionally, the module is rated for vibrations of 0.5G or less, which is essential for maintaining stability in active environments.

This memory module board can manage control for up to six axes, further enhancing its utility in intricate robotic applications. Overall, the A16B-1211-0041 is a functional component designed to support efficient processing in robotic systems.
