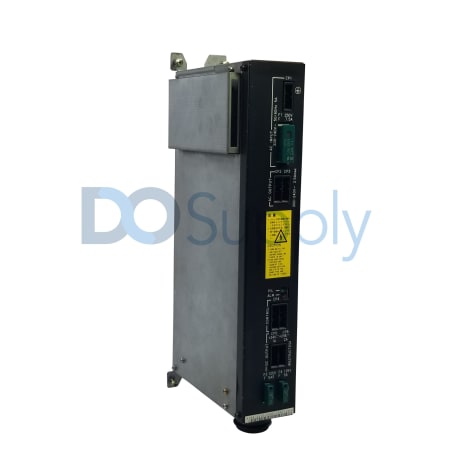

FANUC Series 16 A16B-1212-0950

Product image is representative; revision or series may vary. Contact us to request a specific version.

A16B-1212-0950

|
Need a Specific Revision?

The FANUC A16B-1212-0950 is designed for compatibility with FANUC Series 0 models C, D, and F, including 0MC, 0MD, 0MF, 0TC, 0TD, and 0TF. This unit operates efficiently with an input voltage range of 200 to 240 VAC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A16B-1212-0950

ManufacturerFANUC
Product LineSeries 16
Part NumberA16B-1212-0950
Weight3.00 lbs (1.36 kg)
Compatible SystemsFANUC Series 0 models C, D, and F (e.g., 0MC, 0MD, 0MF, 0TC, 0TD, 0TF)
Input Voltage Range200-240 VAC
Input Frequency50/60 Hz
Input Current5A max
Power Output Capacity600W
Efficiency>85%
Power Factor1
Built-in FunctionsAC input relay, fuse protection, and AC service outlet
Request a Repair

The A16B-1212-0950 power supply unit from FANUC is specifically engineered for use with compatible FANUC Series 0 configurations, such as models C, D, and F. This power supply operates with an input voltage that varies from 200 to 240 VAC, catering well to many industrial environments.

The device supports both 50 Hz and 60 Hz input frequencies and has a maximum input current of 5A. It delivers a power output capacity of 600W. Furthermore, its efficiency remains above 85%, complemented by a power factor of 1, ensuring effective energy utilization.

For user safety and functionality, the A16B-1212-0950 power supply includes essential built-in features such as an AC input relay, protection against fuse failure, and an AC service outlet to facilitate additional connections. Its compact dimensions of 340 mm in length, 50 mm in height, and 180 mm in depth, along with a weight of 0.79 kg, ensure that it can be easily integrated into various setups, maximizing space efficiency.
