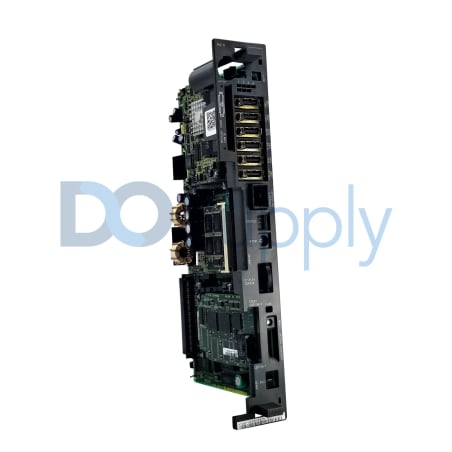

FANUC Series 16 A16B-3200-0325

Product image is representative; revision or series may vary. Contact us to request a specific version.

A16B-3200-0325

|
Need a Specific Revision?

The FANUC A16B-3200-0325 is a main CPU PCB with high-performance processing capabilities. It is compatible with FANUC 18i and 180i-A Series CNC controls, enabling advanced real-time control for a maximum of six axes of operation.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A16B-3200-0325

ManufacturerFANUC
Product LineSeries 16
Part NumberA16B-3200-0325
Weight3.00 lbs (1.36 kg)
Compatible SystemsFANUC 18i/180i-A Series CNC Controls
ProcessorHigh-performance CPU for real-time control
Axis ControlSupports up to 6 axes
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 70°C
Programming RequirementsReload parameters and programs after installation
TypeMain CPU PCB
Mounting TypeSlot-based
Request a Repair

The A16B-3200-0325 from FANUC is an integral main CPU printed circuit board tailored for use with 18i and 180i-A Series CNC controls. This high-performance processor is adept at managing real-time control tasks efficiently, allowing for the coordination of up to six axes simultaneously. Its compact design, measuring 200 mm in width, 130 mm in height, and 70 mm in depth, makes it suitable for various setups.

With a mass of 0.84 kg, the A16B-3200-0325 PCB unit is lightweight yet robust. It functions optimally in operational environments with temperatures ranging from 0°C to 50°C. In terms of storage conditions, it can endure a wider temperature spectrum, making it resilient against extreme thermal variations from -20°C to 70°C.

When installing the A16B-3200-0325, PCB reloading all required parameters and programs is vital to ensure proper operation. The mounting method is slot-based, facilitating straightforward integration into compatible systems.
