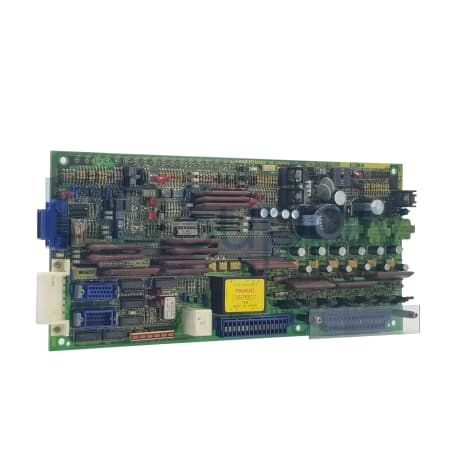

FANUC Series 20 A20B-1000-0560

Product image is representative; revision or series may vary. Contact us to request a specific version.

A20B-1000-0560

|
Need a Specific Revision?

The A20B-1000-0560 from FANUC is a PCB designed for single-axis AC servo drive applications. This model operates on standard FANUC servo voltage and provides proprietary communication ports for connectivity.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A20B-1000-0560

ManufacturerFANUC
Product Type6050 Single Axis AC Servo Drive PCB
Product LineSeries 20
Part NumberA20B-1000-0560
Weight3.00 lbs (1.36 kg)
FunctionControls a single-axis servo system
Power Supply VoltageStandard FANUC servo voltage (DC)
I/O InterfaceFANUC proprietary communication ports
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 70°C
Revisions AvailableE or F
Request a Repair

The FANUC A20B-1000-0560 is a specialized 6050 single-axis AC servo drive PCB. Engineered for precise control of a single-axis servo system, this module is critical for applications requiring accuracy and responsiveness. It utilizes standard FANUC servo voltage supplied in DC for optimal performance.

The A20B-1000-0560 PCB employs FANUC’s proprietary communication ports for its input/output interface, enabling seamless integration with other FANUC equipment. This interface is essential for consistent data exchange and control harmonization.

The A20B-1000-0560 PCB measures 200 x 130 x 70 mm and is compact yet efficient. Its lightweight design weighs only 0.5 kg. When it comes to thermal management, the operating temperature is set between 0°C and 50°C. However, its robustness extends further, as it can be safely stored in conditions ranging from -20°C to 70°C.

Revs E and F of this PCB model are available for enhanced versatility, allowing users to choose the version that best fits their requirements. This module can operate within the established ecosystem of FANUC products.
