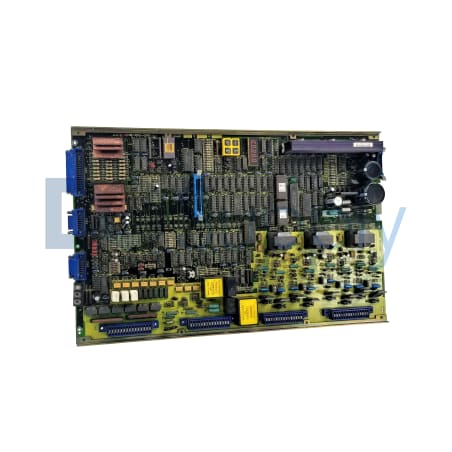

FANUC Series 20 A20B-1001-0120

Product image is representative; revision or series may vary. Contact us to request a specific version.

A20B-1001-0120

|
Need a Specific Revision?

The A20B-1001-0120 model from FANUC represents a digital AC spindle drive PCB. This component is primarily compatible with the FANUC A06B-6055-H002 spindle drive and provides effective speed and torque management through digital feedback mechanisms.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A20B-1001-0120

ManufacturerFANUC
Product TypeDigital AC Spindle Drive PCB
Product LineSeries 20
Part NumberA20B-1001-0120
Weight3.00 lbs (1.36 kg)
Compatible SystemsTypically used with FANUC A06B-6055-H002 AC Spindle Drive
Control MethodSpindle speed and torque control via digital feedback
Input Voltage200V to 240V AC
Power OutputUp to 5kW
Cooling TypeFan cooling or heat-sink based, depending on installation requirements
Temperature Range (Operating)0°C to 45°C
Humidity Range20% to 95% RH (Non-condensing)
MountingDesigned for installation in a control cabinet or panel mounted configuration
Request a Repair

The FANUC A20B-1001-0120 is a digital AC spindle drive printed circuit board (PCB) that facilitates the precise control of spindle speed and torque through digital feedback. Weighing 1.2 kg, this PCB is suitable for use with the FANUC A06B-6055-H002 AC spindle drive, ensuring compatibility within the FANUC automation ecosystem.

This drive operates within a specified input voltage range of 200 to 240 volts AC and supports a maximum power output of 5 kW, making it efficient for various applications. The design dimensions of the unit are measured at 165 mm long, 130 mm wide, and 40 mm high, allowing installation flexibility.

The cooling method is adaptable, as the A20B-1001-0120 can utilize a fan or heat sink depending on the requirements of the installation setting. Its operational temperature range extends from 0°C to 45°C, while it functions optimally in humidity levels of 20% to 95% relative humidity (non-condensing). This PCB is intended for integration into control cabinets or can be mounted in a panel configuration, enhancing its versatility for installation needs.
