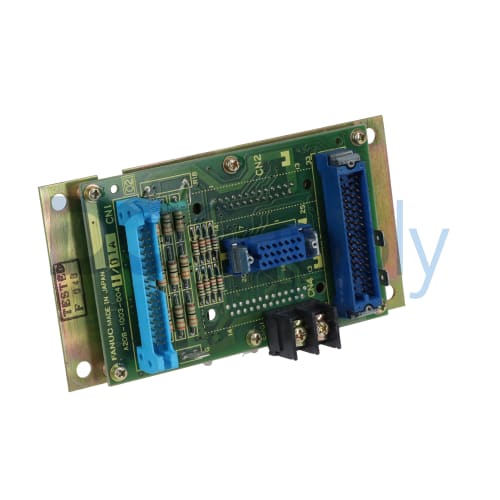

FANUC Series 20 A20B-1003-0041

Product image is representative; revision or series may vary. Contact us to request a specific version.

A20B-1003-0041

|
Need a Specific Revision?

The A20B-1003-0041 is a specialized operator panel PCB designed for use within FANUC CNC systems. This component plays an essential role in providing a user interface for operators, facilitating interaction with the CNC machinery.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A20B-1003-0041

ManufacturerFANUC
Product LineSeries 20
Part NumberA20B-1003-0041
Weight0.56 lbs (0.26 kg)
DescriptionOperator Panel PCB
TypePCB
FunctionOperator Panel Interface
CompatibilityFANUC CNC Systems
Connector TypeHonda MS3106A (inferred from similar models)
Voltage Rating24 VDC (typical for operator panels)
MountingScrew/Chassis (varies by application)
EnvironmentNo corrosive gases
Request a Repair

FANUC’s A20B-1003-0041 serves as an operator panel PCB that is integral to the functionality of FANUC CNC systems. This PCB type provides the necessary interface for operators to control and monitor CNC operations effectively. With dimensions measuring 20 mm by 13 mm by 7 mm, or 0.8 in. x 0.5 in. x 0.3 in., it remains compact enough for various installations. The weight of this board is approximately 0.45 kg, which is equivalent to around 1 lb, making it lightweight for easy handling.

Typically, the voltage rating for this operator panel interface is 24 VDC, a standard specification for such applications. This unit is inferred to feature a Honda MS3106A connector, based on similarities with comparable models. It is installed via screw or chassis mounting, which may differ based on specific requirements within different setups. Notably, it is designed to operate in environments free from corrosive gases, ensuring longevity and reliability in functioning.
