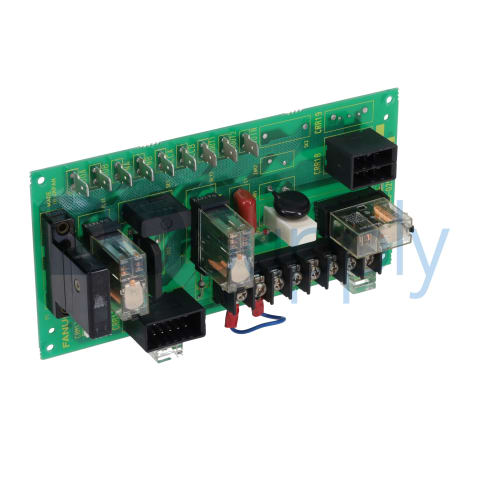

FANUC Series 20 A20B-1006-0250

Product image is representative; revision or series may vary. Contact us to request a specific version.

A20B-1006-0250

|
Need a Specific Revision?

The A20B-1006-0250 terminal board from FANUC's Series 20 is designed for versatile applications in both residential and industrial environments. With a voltage rating of 250 V, this terminal board efficiently supports various relay configurations.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A20B-1006-0250

ManufacturerFANUC
Product LineSeries 20
Part NumberA20B-1006-0250
Weight0.56 lbs (0.26 kg)
ProductTerminal Board
RelaysBoard Mounted
ApplicationsResidential and Industrial
Voltage250 V
Maximum Ambient Temperature60 degrees Celsius
Minimum Ambient Temperature0 degrees Celsius
Operating HumidityUp to 80% (non-condensing)
Storage HumidityUp to 80% (non-condensing)
Maximum Operating Altitude1000 meters above sea level without derating
CertificationCE
Protection ClassIP20
Request a Repair

The FANUC A20B-1006-0250 is a terminal board engineered for diverse uses across residential and industrial applications. This product operates efficiently at a voltage of 250 V and features relays that are mounted directly on the board, enhancing its functionality. Weighing only 0.53 lbs, it is lightweight yet durable enough for standard usage requirements.

Designed to function within a maximum ambient temperature of 60 degrees Celsius and a minimum of 0 degrees Celsius, this terminal board is suitable for a range of environments. It supports operating humidity levels of up to 80% without condensation, ensuring reliability in potentially humid conditions. The storage humidity is also maintained up to 80% under similar conditions.

Additionally, the terminal board is capable of operating at altitudes as high as 1000 meters above sea level without a reduction in performance. It has received CE certification, which indicates compliance with essential European safety and environmental standards. The protection class is rated at IP20, implying a basic level of defense against solid objects but not against moisture, thus it is better suited for controlled environments.
