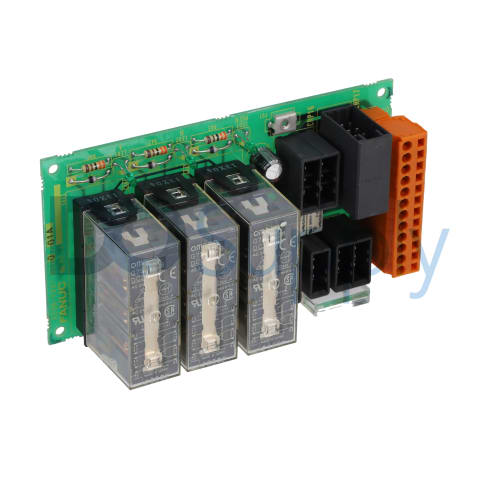

FANUC Series 20 A20B-1007-0540

Product image is representative; revision or series may vary. Contact us to request a specific version.

A20B-1007-0540

|
Need a Specific Revision?

The A20B-1007-0540 from FANUC belongs to the Series 20 and is an I/O relay PCB. It operates with a 24 V DC power input and features a 5A current rating, making it suitable for various control applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A20B-1007-0540

ManufacturerFANUC
Product LineSeries 20
Part NumberA20B-1007-0540
Weight0.75 lbs (0.34 kg)
TypeI/O RELAY PCB
Length350 mm
Width250 mm
Height30 mm
Power Input24 V DC
Current Rating5A
Connector Type60-pin IDC connector interface
Number of Layers8-layer PCB
MaterialFR4 Epoxy Resin
Operating Temperature-10°C to 70°C (operating)
Storage Temperature-20°C to 85°C
Humidity Tolerance5% to 95% RH (non-condensing)
Signal TypeDigital and Analog signals supported
Mount TypeScrew-mounted via corner holes
Request a Repair

The FANUC A20B-1007-0540 is a specialized I/O relay printed circuit board (PCB) that forms part of the Series 20 family. This unit operates effectively with a power input of 24 V DC and accommodates a maximum current rating of 5A, making it suitable for both digital and analog signal processing. It features dimensions of 350 mm in length, 250 mm in width, and a height of 30 mm, along with a total weight of 2 kg.

Designed for robustness, the PCB features an 8-layer construction made from FR4 epoxy resin, renowned for its reliability in electronic applications. It can operate effectively within a temperature range of -10°C to 70°C, while the storage limits extend from -20°C to 85°C, enabling versatility in various environments. Furthermore, it is designed to withstand humidity variations, tolerating relative humidity levels between 5% and 95% without condensation.

The connection interface features a 60-pin IDC connector, facilitating seamless integration with other components. For installation, the unit is structured for screw-mounting via corner holes, ensuring secure placement within system setups.
