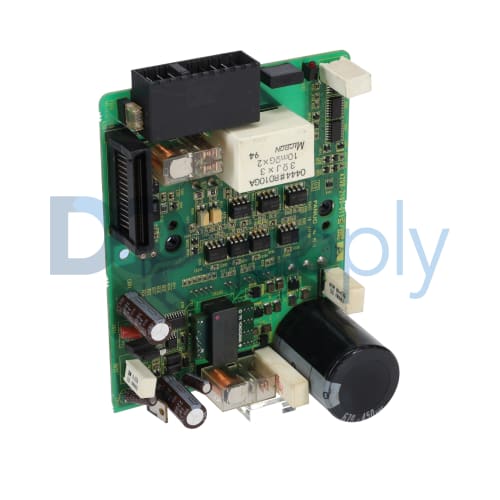

FANUC Series 20 A20B-2100-0133

Product image is representative; revision or series may vary. Contact us to request a specific version.

A20B-2100-0133

|
Need a Specific Revision?

The FANUC A20B-2100-0133 is a specialized servo power board designed for use in CNC systems. This printed circuit board (PCB) facilitates servo control and features standard mounting holes for easy installation.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A20B-2100-0133

ManufacturerFANUC
Product LineSeries 20
Part NumberA20B-2100-0133
Weight4.38 lbs (1.98 kg)
Product NameServo Power Board
Component TypePrinted Circuit Board (PCB) used in CNC systems
MountingStandard mounting holes
FunctionServo control card within the CNC system
Relative Humidity95% or less (no condensation)
EnvironmentNo corrosive gases
Minimum Ambient Operating Temperature0°C
Maximum Ambient Operating Temperature55°C
Minimum Ambient Storage Temperature-20°C
Maximum Ambient Storage Temperature60°C
Heat SinkIntegrated
Request a Repair

The A20B-2100-0133 from FANUC's Series 20 is a critical component within CNC systems, acting as a servo control card. Manufactured as a printed circuit board (PCB), it is tailored for precise control of servo motors, enhancing machining capabilities. Implementation of this board is straightforward due to its standard mounting holes.

Operating conditions are a critical consideration for the A20B-2100-0133 power board. It is capable of functioning in environments with an ambient temperature from 0°C to 55°C. Furthermore, it can sustain a relative humidity level of up to 95%, provided that no condensation occurs. To prolong the lifespan and performance of the servo board, it should be installed in environments devoid of corrosive gases.

The component also accommodates specific storage temperature parameters, with acceptable ranges from -20°C during colder months to up to 60°C in warmer conditions. The elimination of excessive heat is effectively managed by the integrated heat sink, which contributes to the overall reliability and efficiency of the system.
