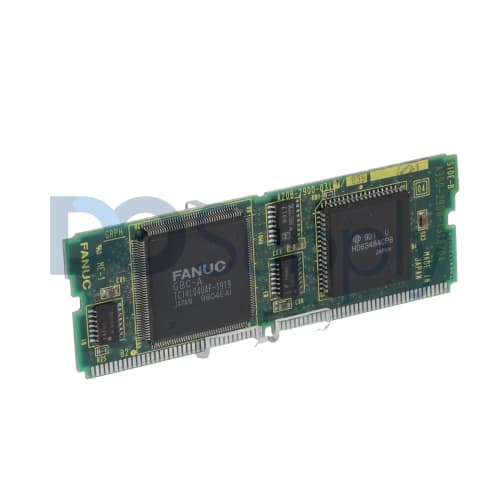

FANUC Series 20 A20B-2900-0311

Product image is representative; revision or series may vary. Contact us to request a specific version.

A20B-2900-0311

|
Need a Specific Revision?

The A20B-2900-0311 from FANUC is a graphic control PCB module specifically designed for CNC display control applications. It operates within a power supply range of 283 to 339 V and utilizes a current rating of 6.5 A for efficient operation.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A20B-2900-0311

ManufacturerFANUC
Product TypeGraphic Control PCB Module
Product LineSeries 20
Part NumberA20B-2900-0311
Weight0.81 lbs (0.37 kg)
Power Supply Range283–339 V
Current Rating6.5 A
Module TypeSMD / Graphic Engine Module
Voltage TypeDC
Signal TypeDigital Graphics Signals
Control FunctionGraphics Display Control
Cooling MethodPassive Air Cooling
Interface TypeInternal Bus Connector
Mounting TypePCB Slot Mount
Typical UseCNC Display Control Systems
CertificationsCE, RoHS
Request a Repair

The FANUC A20B-2900-0311 is a sophisticated graphic control PCB module engineered for precise CNC display control. With a power supply range between 283 and 339 volts, this unit operates on direct current, ensuring stability and reliability.

This module's current rating is specified at 6.5 amperes, accommodating robust performance. Designed as a surface-mount device (SMD), it acts as a graphical engine module that handles digital graphics signals necessary for display operations. The internal bus connector facilitates straightforward integration with other components in CNC systems.

To maintain optimal temperatures, the A20B-2900-0311 employs a passive air cooling mechanism, making it suitable for environments where active cooling may not be feasible. With a weight of just 0.36 kilograms, it is lightweight, promoting easy installation in PCB slots.

This module adheres to CE and RoHS certifications, confirming compliance with industry standards regarding safety and environmental impact. Ideal for use in CNC display control systems, the A20B-2900-0311 blends functionality with reliability to meet the needs of modern industrial applications.
