FANUC Series 20 A20B-2900-0500

Product image is representative; revision or series may vary. Contact us to request a specific version.

A20B-2900-0500

|
Need a Specific Revision?

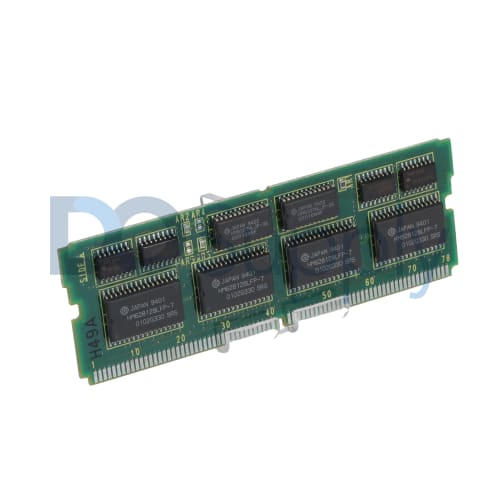

The FANUC A20B-2900-0500 is a RAM module designed for reliable data storage in automation applications. With a 1 MB memory capacity, this CMOS SRAM module ensures compatibility with FANUC R-J Series, as well as 16 and 18 control devices.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A20B-2900-0500

ManufacturerFANUC
Product LineSeries 20
Part NumberA20B-2900-0500
Weight0.13 lbs (0.06 kg)
Description of ModuleRAM Module
Memory Capacity1 MB
TypeCMOS SRAM
CompatibilityFANUC R-J Series, 16, 18 Controls
FunctionStores parameters and programs
Operating Temperature Minimum0°C
Operating Temperature Maximum55 °C
Storage Temperature Minimum-10°C
Storage Temperature Maximum60°C
EnvironmentNo corrosive gases
Humidity95% or less (non-condensing)
Altitude2000 m (6562 ft)
Request a Repair

The A20B-2900-0500 RAM Module from the FANUC Series 20 line offers compact and efficient memory storage capabilities. It features a memory capacity of 1 MB and utilizes CMOS SRAM technology. This module is specifically developed for integration with FANUC's R-J Series as well as the 16 and 18 control systems, ensuring essential program and parameter storage functionality.

With a weight of only 0.04 kg (0.09 lbs.), it supports a lightweight design for ease of implementation in various applications. The module has a specified operating temperature range that spans from a minimum of 0°C to a maximum of 55°C, allowing for proper functioning in diverse working environments. Meanwhile, it can be stored within a temperature range of -10°C to 60°C to ensure data integrity while not in use.

This unit must operate in environments free from corrosive gases to protect internal components. Additionally, the A20B-2900-0500 maintains functionality under humidity levels up to 95% (non-condensing), offering versatility in humid conditions. The device can also function effectively at altitudes reaching up to 2000 meters (6562 feet), making it suitable for high-elevation installations.
