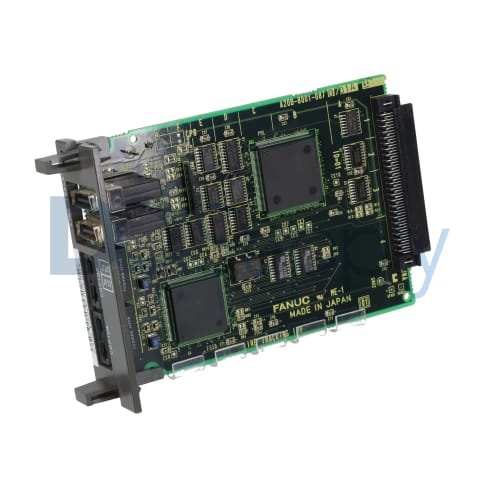

FANUC Series 20 A20B-8001-0870

Product image is representative; revision or series may vary. Contact us to request a specific version.

A20B-8001-0870

|
Need a Specific Revision?

The FANUC A20B-8001-0870 is a PC board designed for industrial automation applications. This component weighs 0.3 kilograms and is designed to operate effectively within a temperature range of 0 °C to 40 °C.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A20B-8001-0870

ManufacturerFANUC
Product LineSeries 20
Part NumberA20B-8001-0870
Weight0.31 lbs (0.14 kg)
ApplicationIndustrial Automation
Operating Temperature0 to 40 degrees Celsius
CompatibilityFANUC ROBOT RJ3 Controller
Length10.8 cm
Width17.78 cm
Height3.81 cm
Input Connection Units72
Output Connection Units56
Power Supply24VDC
Sourced Outputs56 Electrically Fused
Matrix-Type Input56
Request a Repair

The A20B-8001-0870 board model from FANUC's Series 20 is a specialized PC board tailored for use in industrial automation environments. Weighing in at just 0.3 kg, the board is lightweight, making it easy to install and integrate into various systems. Designed to function within a specified temperature range of 0 to 40 degrees Celsius, it is well-suited for typical industrial settings.

This component is specifically compatible with the FANUC ROBOT RJ3 Controller, enhancing its usability in automation applications. Dimensions of the board are notably compact, measuring 10.8 cm in length, 17.78 cm in width, and 3.81 cm in height, making it adaptable to various installation scenarios.

The A20B-8001-0870 board is equipped with a comprehensive input and output arrangement, featuring 72 input connection units and 56 output connection units. This setup enables extensive connectivity, which is crucial for complex automation tasks. Additionally, it operates on a 24V DC power supply, which is standard in many industrial applications.

It also incorporates 56 sourced outputs that are electrically fused for protection against surges, along with a matrix-type input configuration that supports 56 inputs.
