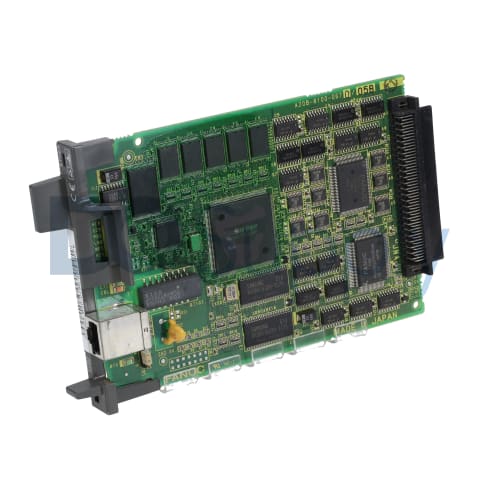

FANUC Series 20 A20B-8100-0670

Product image is representative; revision or series may vary. Contact us to request a specific version.

A20B-8100-0670

|
Need a Specific Revision?

The A20B-8100-0670 model from FANUC is a Fast Ethernet PCB specifically created for use with FANUC CNC controllers. At 0.81 kg, this module enables rapid Ethernet communication, enhancing connectivity within CNC systems.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A20B-8100-0670

ManufacturerFANUC
Product TypeFast Ethernet PCB
Product LineSeries 20
Part NumberA20B-8100-0670
Weight3.00 lbs (1.36 kg)
CompatibilityDesigned for integration with FANUC CNC controllers
FunctionProvides high-speed Ethernet connectivity for CNC systems
Humidity RangeNot specified
Protection RatingIP00
Storage Temperature-20°C to 70°C
Operating Temperature0°C to 50°C
FeaturesCapable of reading limit switches, analog process variables, and positions of complex positioning systems
Request a Repair

FANUC's A20B-8100-0670 is a specialized Fast Ethernet printed circuit board that facilitates high-speed Ethernet connections for CNC applications. The unit weighs 0.81 kg, making installation and integration into various systems manageable. Its primary role is establishing efficient communication between components within a FANUC CNC environment.

The A20B-8100-0670 can operate with many existing CNC controllers. It is built to function reliably in temperatures ranging from 0°C to 50°C during operation. For storage, it can withstand temperatures as low as -20°C and as high as 70°C, making it adaptable to varying conditions. With an IP00 protection rating, this board is designed for internal applications where environmental exposure is not a concern.

This module enhances system functionality by reading limit switches, monitoring analog process variables, and tracking the positions in intricate positioning mechanisms, allowing for greater control and precision in CNC operations.
