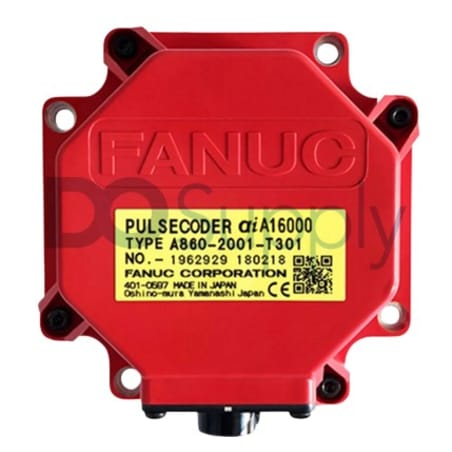

FANUC Series 800 A860-2001-T301

Product image is representative; revision or series may vary. Contact us to request a specific version.

A860-2001-T301

|
Need a Specific Revision?

The FANUC A860-2001-T301 is a high-resolution encoder designed for FANUC AC servo motors from the Alpha i and Alpha iS series. It features robust protection against dust and moisture with an IP65 rating and a specialized Oldham coupling that minimizes application backlash.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for A860-2001-T301

ManufacturerFANUC
Product LineSeries 800
Part NumberA860-2001-T301
Weight0.50 lbs (0.23 kg)
CompatibilityFANUC AC Servo Motors (Alpha i, Alpha iS series)
ResolutionHigh-resolution position feedback
Protection RatingIP65 (dust and water-resistant)
Coupling TypeOldham coupling (reduces backlash)
Interface10-pin encoder connection
Operating Humidity Range20% to 95% RH (Non-condensing)
Storage Humidity Range10% to 85% RH (Non-condensing)
Operating Temperature0°C to 50°C
Storage Temperature-20°C to 50°C
Mounting TypeBolt-on
Request a Repair

The A860-2001-T301 by FANUC is an advanced encoder for the company's AC Servo Motors, tailored explicitly for the Alpha i and Alpha iS series. This product emphasizes precision with high-resolution position feedback for accurate motion control.

The A860-2001-T301 encoder features an Oldham coupling, effectively reducing backlash and ensuring smooth and precise movements. With a 10-pin encoder connection, integration into existing systems remains straightforward. The IP65 protection rating guarantees reliable performance in dusty and wet environments, making it suitable for diverse industrial settings.

Humidity tolerance spans from 20% to 95% RH during operation and 10% to 85% RH while in storage, providing flexibility in varying conditions. The temperature range is designed for adaptability, operating efficiently from 0°C to 50°C while withstanding storage temperatures as low as -20 °C.

A bolt-on mounting type facilitates installation, making it suitable for quick and secure attachments. Whether used in a new installation or as part of refurbishment, the A860-2001-T301 adds reliability and accuracy to motion control applications.
