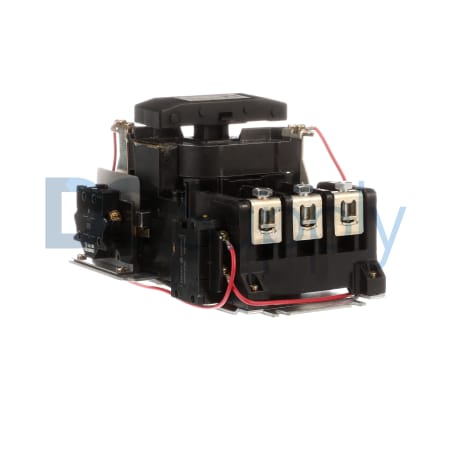

GE Fanuc Emerson 300-Line CR306E00400AAAAA

Product image is representative; revision or series may vary. Contact us to request a specific version.

CR306E00400AAAAA

|
Need a Specific Revision?

The GE Fanuc Emerson CR306E00400AAAAA motor starter is designed within the 300-Line series for efficient control of 3-phase motors. It accommodates rated voltages ranging from 200 to 600 VAC and supports current ratings up to 90 A, making it suitable for significant horsepower applications.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for CR306E00400AAAAA

ManufacturerGE Fanuc Emerson
Product TypeMotor Starter
Product Line300-Line
Part NumberCR306E00400AAAAA
NEMA SizeSize 3
Rated Voltage200 to 600 VAC
Rated Current90 A
Coil Voltage460 to 480 V
Number of Poles3 Poles
Phase Type3-Phase
Horsepower Rating25-50 Hp
Minimum Operating Temperature0°C
Maximum Operating Temperature40°C
Minimum Storage Temperature0°C
Maximum Storage Temperature40°C
Request a Repair

The CR306E00400AAAAA from GE Fanuc Emerson is a motor starter engineered for reliable operation in various industrial applications. This model belongs to the 300-Line series and comes with a NEMA size designation of 3. It operates efficiently within a wide voltage range, from 200 VAC to 600 VAC, accommodating different system requirements.

With a rated current of 90 A, this motor starter supports substantial load handling, while its coil operates at a voltage of 460 to 480 V. The device is built with three poles, making it suitable for 3-phase systems, which typically require robust controls. This motor starter is rated for horsepower applications ranging from 25 to 50 Hp, making it effective in moderate to heavy-duty motor control scenarios.

This unit is designed to function optimally in ambient temperatures from 0°C to 40°C, applicable for both operation and storage conditions. Each starter must be stored within the same temperature limits to prevent inefficiencies or damage. This model offers a practical solution for scenarios demanding reliable and effective motor control.
