IC670CBL002

Revisions: A

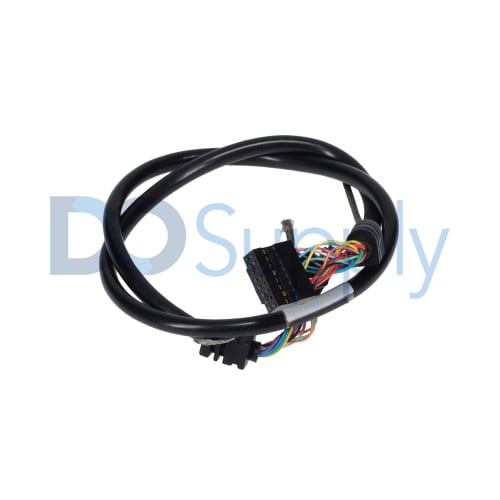

Description: The GE Fanuc Field Control IC670CBL002 cable is also known as the IC670CBL002 base connection cable and it is used to interconnect 2 GE Fanuc terminal blocks to each other or one GE Fanuc terminal block to its commanding BIU (Bus Interface Unit). It is longer than the standard cables that are provided with terminal blocks, and it is designed to facilitate the connection of 2 devices that happen to be far apart on a panelboard.
In Stock Ships Today
Request a quote for IC670CBL002

Description:

The GE Fanuc Field Control IC670CBL002 cable is also known as the IC670CBL002 base connection cable and it is used to interconnect 2 GE Fanuc terminal blocks to each other or one GE Fanuc terminal block to its commanding BIU (Bus Interface Unit). It is longer than the standard cables that are provided with terminal blocks, and it is designed to facilitate the connection of 2 devices that happen to be far apart on a panelboard.



top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the IC670CBL002.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 5 with 12 reviews

    Technical Specifications for IC670CBL002

BrandGE Fanuc
SeriesField Control
Part NumberIC670CBL002
Type of ComponentExpansion connection cable
ESD ProtectionBraided drain wire connected to ground or chassis
Length in Centimeters54.61
Length in Inches21
Protected Against MisconnectionsYes, using keyed connectors
Devices it can Interconnect WithTerminal block to terminal block, terminal block to BIU
Number of Cables per Field Control Station1
BrandGE Fanuc
SeriesField Control
Part NumberIC670CBL002
Type of ComponentExpansion connection cable
ESD ProtectionBraided drain wire connected to ground or chassis
Length in Centimeters54.61
Length in Inches21
Protected Against MisconnectionsYes, using keyed connectors
Devices it can Interconnect WithTerminal block to terminal block, terminal block to BIU
Number of Cables per Field Control Station1
s

About IC670CBL002

The GE Fanuc Field Control IC670CBL002 Base Connection Cable is an optional piece of wiring with a length of 54.61 centimeters (21 inches) that is used to interconnect GE Fanuc terminal blocks that are using keyed terminals to each other. It has been manufactured by GE Fanuc as an extension kit to address the common problem of interconnecting 2 terminal blocks that are located further apart on the same panelboard than those in the standard set up usually are. Only one of these IC670CBL002 Base Connection Cables is allowed per GE Fanuc Field Control station because of the different electrical characteristics of the longer cables and the shorter ones.







The GE Fanuc IC670CBL002 Base Connection Cable comes pre-assembled from the factory, with keyed connectors designed to make an erroneous connection impossible. It can be used to interconnect 2 GE Fanuc Terminal Blocks to one another or a single GE Fanuc Terminal Block to its corresponding BIU (Bus Interface Unit). The GE Fanuc IC670CBL002 Base Connection Cable comes with a braided ground wire which is meant to be used as an ESD protection measure. This cable must be connected to zero voltage at both ends (ground or chassis) to provide effective immunity against electrical interference or external noise. This 21-inch expansion cable should be installed so as not to interrupt the flow of data between modules and to respect the connection polarity of each of the bases. If the cable is connected to the top connector of one base, then it should be plugged into the bottom connector of the next base.



Repair Services for IC670CBL002

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your IC670CBL002. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for IC670CBL002

Please refer to the manual for more information about the IC670CBL002 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
IC670CBL002A
IC670CBL002-A, Series A, Rev A Request Quote
