IC670GBI001

Revisions: A
Description: The GE Fanuc IC670GBI001 bus interface is intended for Field Control series IC670, IC670G, IC670GB, IC670GBI, and IC670GBI00 modules. The unit has a nominal rated voltage of 115 Volts AC and 125 Volts DC.
In Stock Ships Today
Request a quote for IC670GBI001

Description:

The GE Fanuc IC670GBI001 bus interface is intended for Field Control series IC670, IC670G, IC670GB, IC670GBI, and IC670GBI00 modules. The unit has a nominal rated voltage of 115 Volts AC and 125 Volts DC.



top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: A

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the IC670GBI001.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 4.5 with 6 reviews

    Technical Specifications for IC670GBI001

BrandAllen Bradley / Rockwell Automation
SeriesField Control
Part NumberIC670GBI001
TypeBus interface unit
CompatibilityField control IC670 / IC670G / IC670GB / IC670GBI / IC670GBI00
Nominal rated voltage115 Volts AC, 125 Volts DC
Voltage range90 to 135 Volts AC / 105 to 150 Volts DC
Frequency47 to 63 Hertz
Power at 115 Volts AC48 Volt-Amps (maximum) at full load
Power at 125 Volts AC24 Watts (maximum) at full load
Inrush current20 Amps (peak), 3 milliseconds (maximum)
Power supply output6.5 Volts DC
Holdup time20 milliseconds (maximum)
BrandAllen Bradley / Rockwell Automation
SeriesField Control
Part NumberIC670GBI001
TypeBus interface unit
CompatibilityField control IC670 / IC670G / IC670GB / IC670GBI / IC670GBI00
Nominal rated voltage115 Volts AC, 125 Volts DC
Voltage range90 to 135 Volts AC / 105 to 150 Volts DC
Frequency47 to 63 Hertz
Power at 115 Volts AC48 Volt-Amps (maximum) at full load
Power at 125 Volts AC24 Watts (maximum) at full load
Inrush current20 Amps (peak), 3 milliseconds (maximum)
Power supply output6.5 Volts DC
Holdup time20 milliseconds (maximum)
s

About IC670GBI001

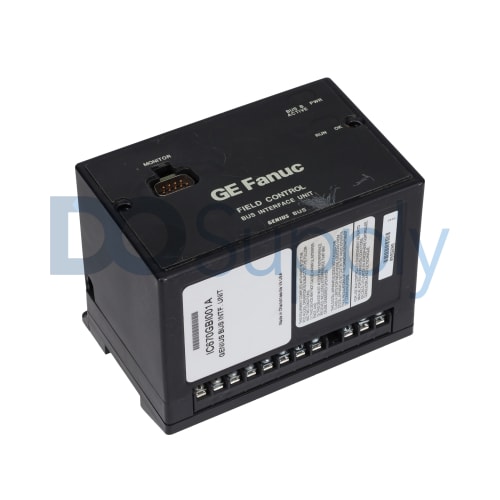

The IC670GBI001 bus interface is a GE Fanuc component used with Field Control devices. GE Fanuc is a well-known producer of technical solutions for a variety of industries, and the GE IC670GBI001 bus interface module is resistant to common conditions in industrial environments such as noise, vibration, high and low temperatures, and humidity. The IC670GBI001 bus interface unit has a nominal rated voltage of 115 Volts AC and 125 Volts DC and an input frequency range of 47 to 63 Hertz. The voltage range of the unit is 90 to 135 Volts AC and 105 to 150 Volts DC. The IC670GBI001 bus interface module has a power consumption rating of 48 Volt-Amps (maximum) at 115 Volts AC at a full load and a power consumption of 24 Watts (maximum) at 125 Volts AC at a full load. The unit has a holdup time of 20 milliseconds and a power supply output voltage of 6.5 Volts DC.







The IC670GBI002 bus interface module operates perfectly with other components like a bus interface unit power supply and a bus interface unit terminal block. The IC670GBI001 module has a top-quality housing made from aluminum and it includes LED indicators for status updates along with an HHM connector for a hand-held monitor. The IC670GBI001 bus interface unit has a logic power supply and it features configuration files that are stored in the memory of the terminal block. The 4 included indicators are the "PWR," "OK," "RUN" and "BUS B" LEDs. The LEDs indicate the proper functioning of the module and the status of communication with the CPU. Since the IC670GBI002 unit can be used on a DC power supply, the backplane current may be limited by lower input voltages.



Repair Services for IC670GBI001

Type Lead Time Price Action
Repair Service 2-4 weeks $2327.5cartAdd to Cart

Our highly skilled technicians can repair your IC670GBI001. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for IC670GBI001

Please refer to the manual for more information about the IC670GBI001 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
IC670GBI001A
IC670GBI001-A, Series A, Rev A Request Quote
Common misspellings:
  • 1C670GBI001
  • IC67oGBI001
  • IC670G8I001
  • IC670GB1001
  • IC670GBIo01
  • IC670GBI0o1
  • IC670GBI00l
  • IC670GBI001

Dimensions For IC670GBI001

Size
Input Type
Panel Cutout Height in mm
Panel Cutout Width in mm
Terminal Height in mm
Terminal Width in mm
Terminal Overall Depth in mm
Terminal Mounted Depth in mm

Dimensions For IC670GBI001

Resolutions For IC670GBI001

About

Technical Specifications for IC670GBI001

BrandAllen Bradley / Rockwell Automation
SeriesField Control
Part NumberIC670GBI001
TypeBus interface unit
CompatibilityField control IC670 / IC670G / IC670GB / IC670GBI / IC670GBI00
Nominal rated voltage115 Volts AC, 125 Volts DC
Voltage range90 to 135 Volts AC / 105 to 150 Volts DC
Frequency47 to 63 Hertz
Power at 115 Volts AC48 Volt-Amps (maximum) at full load
Power at 125 Volts AC24 Watts (maximum) at full load
Inrush current20 Amps (peak), 3 milliseconds (maximum)
Power supply output6.5 Volts DC
Holdup time20 milliseconds (maximum)
BrandAllen Bradley / Rockwell Automation
SeriesField Control
Part NumberIC670GBI001
TypeBus interface unit
CompatibilityField control IC670 / IC670G / IC670GB / IC670GBI / IC670GBI00
Nominal rated voltage115 Volts AC, 125 Volts DC
Voltage range90 to 135 Volts AC / 105 to 150 Volts DC
Frequency47 to 63 Hertz
Power at 115 Volts AC48 Volt-Amps (maximum) at full load
Power at 125 Volts AC24 Watts (maximum) at full load
Inrush current20 Amps (peak), 3 milliseconds (maximum)
Power supply output6.5 Volts DC
Holdup time20 milliseconds (maximum)

About IC670GBI001

The IC670GBI001 bus interface is a GE Fanuc component used with Field Control devices. GE Fanuc is a well-known producer of technical solutions for a variety of industries, and the GE IC670GBI001 bus interface module is resistant to common conditions in industrial environments such as noise, vibration, high and low temperatures, and humidity. The IC670GBI001 bus interface unit has a nominal rated voltage of 115 Volts AC and 125 Volts DC and an input frequency range of 47 to 63 Hertz. The voltage range of the unit is 90 to 135 Volts AC and 105 to 150 Volts DC. The IC670GBI001 bus interface module has a power consumption rating of 48 Volt-Amps (maximum) at 115 Volts AC at a full load and a power consumption of 24 Watts (maximum) at 125 Volts AC at a full load. The unit has a holdup time of 20 milliseconds and a power supply output voltage of 6.5 Volts DC.







The IC670GBI002 bus interface module operates perfectly with other components like a bus interface unit power supply and a bus interface unit terminal block. The IC670GBI001 module has a top-quality housing made from aluminum and it includes LED indicators for status updates along with an HHM connector for a hand-held monitor. The IC670GBI001 bus interface unit has a logic power supply and it features configuration files that are stored in the memory of the terminal block. The 4 included indicators are the "PWR," "OK," "RUN" and "BUS B" LEDs. The LEDs indicate the proper functioning of the module and the status of communication with the CPU. Since the IC670GBI002 unit can be used on a DC power supply, the backplane current may be limited by lower input voltages.



Repairs
Type Lead Time Price Action
Repair Service 2-4 weeks $2327.5cartAdd to Cart

Our highly skilled technicians can repair your IC670GBI001. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Type Lead Time Price Action
Repair Service 2-4 weeks $2327.5cartAdd to Cart

Our highly skilled technicians can repair your IC670GBI001. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions

Please refer to the manual for more information about the IC670GBI001 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
IC670GBI001A
IC670GBI001/A, Series A, Rev A Request Quote

Common misspellings:
  • IC67oGBI001
  • IC670G8I001
  • IC670GBIo01
  • IC670GBI0o1
  • IC670GBI00l
  • IC670GBI001
