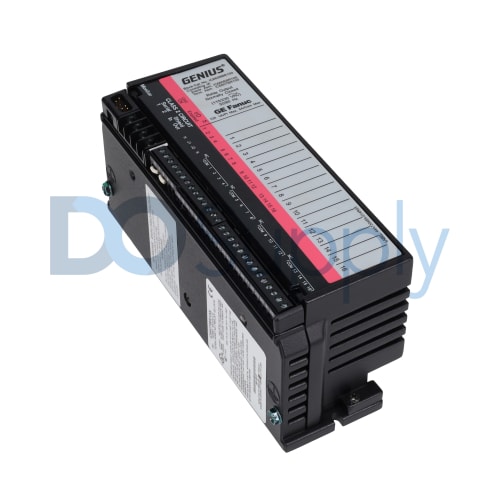

GE Fanuc Emerson Genius I-O IC660BBR100

Product image is representative; revision or series may vary. Contact us to request a specific version.

IC660BBR100

|
Need a Specific Revision?

The IC660BBR100 model from GE Fanuc Emerson is a relay output block centrally designed for controlling multiple outputs. This device provides comprehensive functionality with support for up to 16 outputs, operating at a power specification of either 115V or 230V AC.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for IC660BBR100

ManufacturerGE Fanuc Emerson
Product TypeRelay Output Block
Product LineGenius I-O
Part NumberIC660BBR100
Weight3.81 lbs (1.73 kg)
Normally-Closed Relay OutputsSupported
Number of Outputs16 Outputs
Power115/230V AC
Frequency50/60 Hz
AC Output Voltage5-250V AC
DC Output Voltage5-220V DC
Operating Temperature0 to 40 degrees Celsius
Storage Temperature0 to 50 degrees Celsius
Max. Operating Humidity80% RH, non-condensing
Max. Storage Humidity80% RH, non-condensing
Max. Operating Altitude1000m above sea level without derating
Request a Repair

The GE Fanuc Emerson IC660BBR100 operates as an efficient relay output block designed to manage various output tasks in automation systems. Featuring 16 outputs, this module operates with a power supply of either 115V or 230V AC, providing flexibility for different applications. The unit is compatible with both AC and DC output voltages, ranging from 5 to 250 volts AC and 5 to 220 volts DC.

This device is built to endure a variety of temperatures, able to function correctly within an operating range of 0 to 40 degrees Celsius. Additionally, its storage capabilities allow for temperatures of 0 to 50 degrees Celsius. The design also accommodates operational conditions with humidity levels up to 80% relative humidity, non-condensing.

The IC660BBR100 supports normally-closed relay outputs, which enhance its integration into various automation systems. For geographical applications, it operates effectively at altitudes up to 1000 meters without experiencing derating. Overall, the IC660BBR100 is structured for reliable performance in diverse settings, making it suitable for industrial use.

Revision Part #Also known as
IC660BBR100AIC660BBR100-A, Series A, Rev A
IC660BBR100KIC660BBR100-K, Series K, Rev K
IC660BBR100MIC660BBR100-M, Series M, Rev M
IC660BBR100PIC660BBR100-P, Series P, Rev P
Don't see your particular revision? Contact us now.
