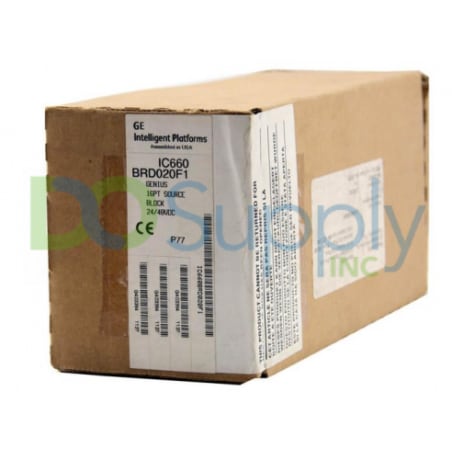

IC660BRD020

The IC660BRD020 from GE Fanuc Emerson represents a robust I/O block within the Genius I-O line. With the capability to manage up to 16 output circuits, it operates efficiently across a voltage range of 18 to 56 volts DC. The maximum ripple is capped at 10%, ensuring stable performance under varying conditions. The module draws a peak current of 300 milliamps, which aligns with its robust design specifications.

This block tolerates a power supply dropout of 10 milliseconds, meaning it can sustain functionality briefly during power interruptions. Significant block-to-block isolation is provided, rated at 1500 V AC, which enhances safety and prevents cross-talk between sections. Additionally, the unit allows input filtering across a selection range of 10 ms to 100 ms, catering to different application needs.

The device also includes several status indications: an overall Unit OK LED alongside individual channel indicators contribute to straightforward monitoring of operational status. Operating temperature for the product ranges from 0°C to 60°C, while its storage capabilities can handle temperatures as low as -40°C and up to 85°C. Designed for environments with humidity levels from 5% to 95% without condensation, it ensures reliability in a variety of settings.

Dissipation of heat is managed effectively, rated at 90 W, allowing for effective thermal management. This I/O block is engineered for backplane mounting, providing ease of installation within compatible systems.
