IC660TBD022

IC660TBD022

Revisions: B H K L

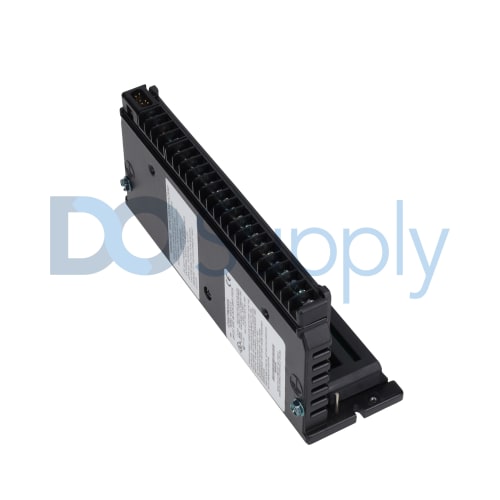

Description: The IC660TBD022 terminal assembly is a Genius I/O component that is manufactured by GE Fanuc. This terminal assembly has 16 discrete inputs and outputs and it operates on 24 Volts DC. The terminal as a 10% ripple and 10 milliseconds of DC power supply dropout time.
Rated 4.9 with 19 reviews
About | Product Specifications
top legal disclaimer
top legal disclaimer

credit cards accepted
better business bureau

In Stock Ships Today

Submit RFQ for IC660TBD022

Add more parts to quote

Description:

The IC660TBD022 terminal assembly is a Genius I/O component that is manufactured by GE Fanuc. This terminal assembly has 16 discrete inputs and outputs and it operates on 24 Volts DC. The terminal as a 10% ripple and 10 milliseconds of DC power supply dropout time.


About | Products Specs

top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: B H K L

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the IC660TBD022.
Exchange: Exchange credit for your defective unit available.

To Speak to a sales representative for pricing & lead time:

mobile

Phone
1-800-730-0292
phone

International
919-205-4392

Email
[email protected]

Rated 4.9 with 19 reviews

    Technical Specifications for IC660TBD022

BrandGE Fanuc
SeriesGenius I-O
Part NumberIC660TBD022
Block Type16 circuit discrete input and output
Rated Voltage24 Volts DC
Operating Voltage18 to 30 Volts DC
Ripple10% maximum
Power Supply Dropout Time10 milliseconds (DC)
Heat Dissipation (Maximum)68.8 Watts with 16 outputs on at 2 Amps
Block to Block Isolation1500 Volts for 1 minute
Dimensions (HxWxD)224 x 88 x 100 millimeters (8.8 x 3.5 x 3.9 inches)
Weight1.8 kilograms (4 pounds)
Operating Temperature 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Storage Temperature -40 to 100 degrees Celsius (-40 to 212 degrees Fahrenheit)
BrandGE Fanuc
SeriesGenius I-O
Part NumberIC660TBD022
Block Type16 circuit discrete input and output
Rated Voltage24 Volts DC
Operating Voltage18 to 30 Volts DC
Ripple10% maximum
Power Supply Dropout Time10 milliseconds (DC)
Heat Dissipation (Maximum)68.8 Watts with 16 outputs on at 2 Amps
Block to Block Isolation1500 Volts for 1 minute
Dimensions (HxWxD)224 x 88 x 100 millimeters (8.8 x 3.5 x 3.9 inches)
Weight1.8 kilograms (4 pounds)
Operating Temperature 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Storage Temperature -40 to 100 degrees Celsius (-40 to 212 degrees Fahrenheit)
s

About IC660TBD022

The IC660TBD022 terminal assembly is a terminal assembly that is designed and manufactured by GE Fanuc. This Genius I/O GE terminal assembly has 6 analog input circuits with an accuracy of 0.1%. The alarm limits are programmable for these circuits and all of the faults are displayed by the hand-held monitor and the computer which are both typically used for programming purposes. The IC660TBD022 terminal assembly weighs around 1.8 kilograms and its dimensions include a height of 224 millimeters (8.8 inches), a width of 88.9 millimeters (3.5 inches), and a depth of 100 millimeters (3.9 inches). The terminal assembly includes LED signalization at the I/O block and it supports BSM control. The heat dissipation rating of the component is 12 Watts maximum.



The IC660TBD022 terminal assembly comes with a diagnostics features that includes numerous messages about the input states. For example, the terminal will trigger a message if current is below 2 milliamps or if the high alarm is above the allowed level. This terminal assembly model needs voltage within the range of 93 to 132 Volts AC and 105 to 145 Volts DC. This means that the unit supports operation on both AC and DC power. The terminal assembly is part of the current source input block and it has a 10% ripple along with frequency rating of 47 to 63 Hertz. The IC660TBD022 terminal assembly enables the customization of the way the system handles faults. This means that the fault reports can be turned off for different circuits, depending on the requirements. However, the message about possible faults in the circuits will be sent to the host computer even if the fault reporting option is turned off.
