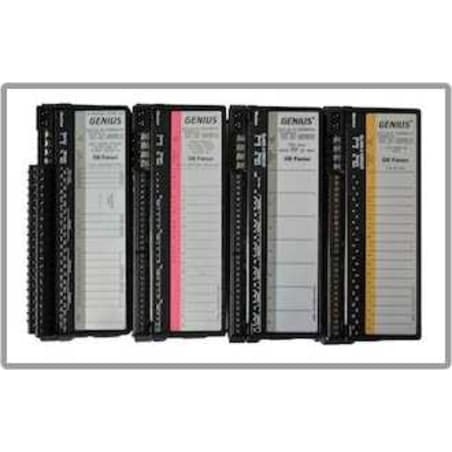

Product image is representative; revision or series may vary. Contact us to request a specific version.
IC660TRD020
The GE Fanuc Emerson IC660TRD020 is a terminal assembly that supports six isolated channels dedicated to resistance temperature detector inputs. Operating at rated voltages of 24/48 V DC, this terminal requires 150 mA of DC power for effective functioning.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for IC660TRD020
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Terminal Assembly |
| Product Line | Genius I-O |
| Part Number | IC660TRD020 |
| Weight | 3.00 lbs (1.36 kg) |
| Input Type | Resistance Temperature Detector |
| Number of Channels | 6 Isolated Channels |
| Rated Voltage | 24/48 V DC |
| DC Power Requirement | 150 mA |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 60°C |
| Minimum Storage Temperature | -40°C |
| Maximum Storage Temperature | 100°C |
| Minimum Relative Humidity | 5% (Non-Condensing) |
| Maximum Relative Humidity | 95% (Non-Condensing) |
| Installation Altitude | 1000 m |
The IC660TRD020 part from GE Fanuc Emerson typifies a terminal assembly with specific functions aimed at temperature monitoring via resistance temperature detectors. Designed with six isolated channels, it enables the measurement of temperature with minimal risk of interference. The assembly operates effectively under a rated voltage of 24 or 48 volts DC, drawing a current requirement of 150 mA during operation. This makes it suitable for use in various industrial environments.
With an operating temperature range of 0°C to 60°C, this terminal ensures reliable performance in typical conditions. When not in use, this assembly can withstand temperatures between -40°C and 100°C, maintaining integrity during storage. The capability to function in relative humidity levels ranging from 5% to 95% without condensation expands its application scope in diverse environments.
This terminal assembly is also designed for installations up to 1000 meters in altitude, accommodating various site requirements. The IC660TRD020 offers a dependable solution for systems requiring precise temperature input, supporting enhanced monitoring and control in industrial applications.
