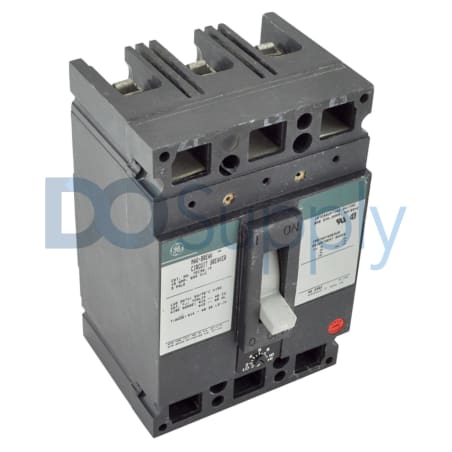

Product image is representative; revision or series may vary. Contact us to request a specific version.
TEC36050
The TEC36050 is a molded case circuit breaker from GE Fanuc Emerson within the Mag-Break series. It is built to handle various electrical applications with a rated current of 50 A and operates effectively at a voltage of up to 600V AC.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TEC36050
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Molded Case Circuit Breaker (MCCB) |
| Product Line | Mag-Break |
| Part Number | TEC36050 |
| UPC | 783164069181 |
| Circuit Poles | 3 Poles |
| Current Rating | 50 A |
| Voltage Rating | 600V AC |
| Power Phases | 3-Phase |
| Short-Circuit Rating | 10 kA @ 480V AC |
| Protection Method | Magnetic Trip Only |
| Trip Setting | Fixed |
| Conductor Termination | Lug Terminals |
| Protection Scope | Short-Circuit (MCP) |
| Installation Method | Panel Mount |
| Operation Mechanism | Manual Toggle |
The GE Fanuc Emerson TEC36050, classified as a molded case circuit breaker (MCCB), is essential for safeguarding electrical circuits. Rated for 50 A, it functions reliably within a voltage spectrum of 600V AC. This device is specially configured for 3-phase systems and includes three poles, making it suitable for various applications.
The short-circuit capacity reaches up to 10 kA at 480V AC, providing robust protection against electrical faults. It employs a magnetic-only trip method with a fixed trip setting to enhance reliability. For connection purposes, this model features lug terminals, which facilitate secure and stable wire connections.
Installation is simplified with a panel mount design, making it straightforward to integrate into existing infrastructures. The operation mechanism is manual toggle, ensuring ease of use during manual overrides or resets. The protection scope focuses on short-circuit conditions (MCP), underscoring the device's role in system safety and reliability.
