Technical Specifications for ES1030
Manufacturer | GE Fanuc |
Brand | QuickPanel |
Part Number/Catalog No. | ES1030 |
Product Line | GE QuickPanel |
Display Size | 10 in. |
Input Type | Touchscreen |
Communication | RS232 and RS485 |
Input Power | 24V DC |
Software | Proficy View-Machine Edition |
Communication Cable | HMI-CAB-CS18 |
Shipping Weight | 12 lbs. |
Shipping Dimension | 18 x 14 x 8 in. |
Shipping Dimension | 14 x 12 x 10 in. |
Product Lifecycle Status* | Discontinued/Obsolete |
*The GE Fanuc - GE IP - Emerson ES1030 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement ES1030 units instead of migration.
Manufacturer | GE Fanuc |
Brand | QuickPanel |
Part Number/Catalog No. | ES1030 |
Product Line | GE QuickPanel |
Display Size | 10 in. |
Input Type | Touchscreen |
Communication | RS232 and RS485 |
Input Power | 24V DC |
Software | Proficy View-Machine Edition |
Communication Cable | HMI-CAB-CS18 |
Shipping Weight | 12 lbs. |
Shipping Dimension | 18 x 14 x 8 in. |
Shipping Dimension | 14 x 12 x 10 in. |
Product Lifecycle Status* | Discontinued/Obsolete |
*The GE Fanuc - GE IP - Emerson ES1030 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement ES1030 units instead of migration.
s
About ES1030

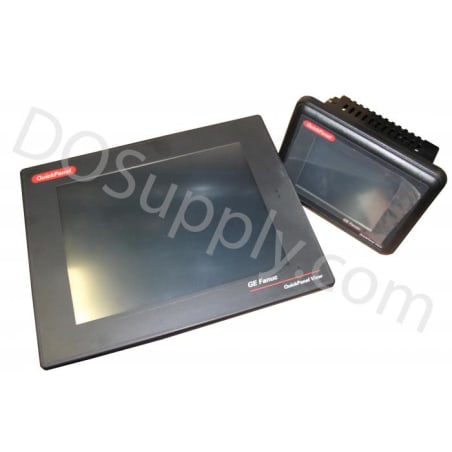

The ES1030 display is a 10-inch GE Fanuc QuickPanel display featuring the touchscreen input type. The unit features the RS-232 and the RS-485 communication types. The ES1030 display supports the HMI-CAB-CS18 communication cable and it weighs 12 pounds at shipping. The unit’s input power is 24 Volts DC while it runs on the Proficy View machine edition software. The Quickpanel displays like this one feature an integrated flat-panel display that is designed to provide the GE Fanuc display units either the color or the monochrome display. The ES1030 display features the monochrome display graphics. The touchscreen features a resistive touch panel with a 12-bit resolution. With proper calibration, the unit provides a grid of touch cells that appear on the face of the display. Although the users can operate the touch cells with their fingers, it is recommended that a blunt stylus be used instead to protect the screen from contaminating elements. This will improve the display’s functionality and longevity.
The ES1030 display also supports a soft input panel that is a software emulation keypad which is used by the operators to enter instructions and data into the device. The ES1030 display soft input panel can be hidden or viewed by simply clicking on the system tray of the taskbar. Then when it is visible, the keyboard can be dragged to any corner or position on the screen to ensure that other parts or icons on the screen are viewable. The ES1030 display features a serial data communication port labeled as the COM 1 port. This is a general-purpose bidirectional serial data channel and it is accessible as a direct connection or as a dial-up remote networking connection.
Repair Services for ES1030
Type |
Lead Time |
Price |
Action |
Repair Service |
2-4 weeks |
Ask | Get Quote |
Our team of highly skilled technicians can repair your GE FanucES1030. All of our repairs come with a 1 Year warranty, please contact us for more information about our repair process.
Revisions for ES1030
Please refer to the manual for more information about the ES1030 such as the wiring diagrams, data sheets,
firmware information and migration or obsolescence details.
