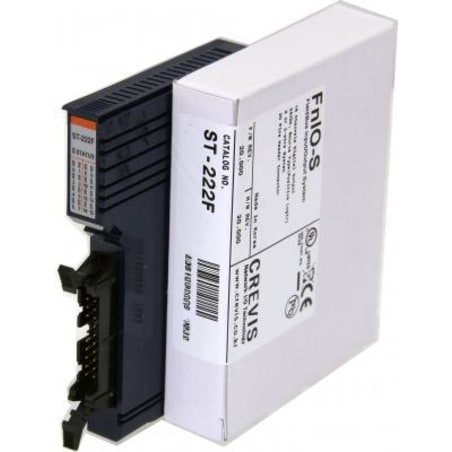

Product image is representative; revision or series may vary. Contact us to request a specific version.
ST-222F
The ST-222F from GE Fanuc Emerson serves as a discrete output module in the RSTi PacSystem series. It features 16 digital positive logic outputs operating at 24V DC, with load current capabilities of 0.5A per channel and 4A across all outputs.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ST-222F
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Discrete Output Module |
| Product Line | RSTi PacSystem |
| Part Number | ST-222F |
| Weight | 2.00 lbs (0.91 kg) |
| Number of Outputs | 16 |
| Output Type | Digital Positive Logic Outputs |
| Output Voltage | 24V DC |
| Output Points per Common | 16 Points |
| Load Current per Channel | 0.5A, max. |
| Load Current per Common | 4A, max. |
| Response Time | 0.3 ms (ON to OFF and OFF to ON) |
| Field Power | 11-28.8V DC (24V DC) |
| Power Dissipation per Channel | 3 mA at 28.8V DC |
The ST-222F is part of the RSTi family from GE Fanuc Emerson and functions as a discrete output module. Capable of controlling up to 16 outputs, this module delivers digital positive logic signals at 24V DC, making it suitable for numerous control applications. Individuals can enjoy a maximum load current capacity of 0.5A for each channel, while the total load current does not exceed 4A across all outputs.
In terms of speed, the ST-222F provides a quick response time of 0.3 milliseconds when toggling states, whether transitioning from ON to OFF or in the reverse direction. Power requirements for the module are flexible, supporting field voltage levels ranging from 11 to 28.8V DC, optimally operating at 24V DC.
Furthermore, the power dissipation per channel at 28.8V DC is specified at 3 mA. This efficiency allows for stable operation while minimizing energy loss. Overall, the ST-222F integrates seamlessly into systems that demand swift and reliable output control.
