Product image is representative; revision or series may vary. Contact us to request a specific version.

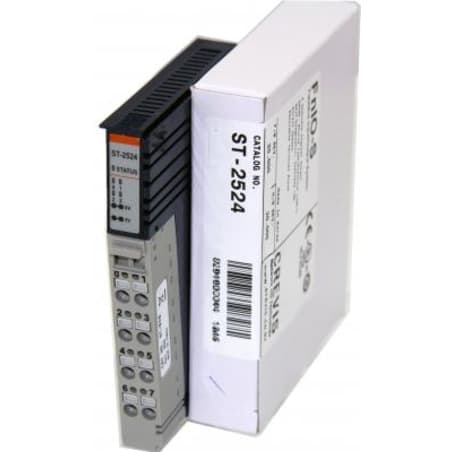

ST-2524
The ST-2524 from GE Fanuc Emerson is an output module specifically designed for the RSTi PacSystem series. This I/O module supports up to four channels, providing a positive logic configuration for reliable outputs.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for ST-2524
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | I/O Module |
| Product Line | RSTi PacSystem |
| Part Number | ST-2524 |
| Weight | 2.00 lbs (0.91 kg) |
| Module Type | Output Module |
| Number of Channels | 4 |
| Logic Type | Positive |
| Voltage | 24 Volts DC |
| Current | 2 Amps at 24 Volts DC |
| System Power | 5 Volts DC |
| Mounting | DIN Rail |
| Operating Temperature | 0 to 50 degrees Celsius |
| Diagnostics | Supported |
| Approximate Dimensions | 12 x 99 x 70 millimeters |
The GE Fanuc Emerson ST-2524 is an advanced output module utilized within the RSTi PacSystem framework. Built for effective communication and control, this module comprises four distinct channels, all operating under a positive logic system. Rated for a voltage of 24 Volts DC, it is capable of delivering a maximum current of 2 Amps per channel. To ensure proper functionality, the module requires a 5 Volts DC power input for the system.
Designed with practicality in mind, it mounts easily onto DIN rail setups, simplifying installation and organization. The environmental tolerances allow for operation within a safe temperature range of 0 to 50 degrees Celsius, making it appropriate for various industrial settings. Furthermore, diagnostic capabilities are integrated into the module, allowing for easier troubleshooting and system monitoring. In terms of size, the ST-2524 measures approximately 12 mm in width, 99 mm in height, and 70 mm in depth, allowing for efficient use of space in control panels.
