IC693CBL304

Revisions: B
Description: The GE Fanuc Automation IC693CBL304 port expansion (Wye) cable separates the RS-232 signals from the RS-485 signals in a PCM module. It works as a Wye cable to enable 2 connections from a single port.
In Stock Ships Today
Request a quote for IC693CBL304

Description:

The GE Fanuc Automation IC693CBL304 port expansion (Wye) cable separates the RS-232 signals from the RS-485 signals in a PCM module. It works as a Wye cable to enable 2 connections from a single port.


DO Supply is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with DO Supply's 1-year warranty

Rockwell Disclaimer: The product is used surplus. DO Supply is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because DO Supply is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. DO Supply also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. DO Supply also makes no representations as to your right to install any such firmware on the product. DO Supply will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

disclaimer
credit cards
better business bureau
Revisions: B

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via UPS, DHL, and TNT
Repairs: We offer repair service for the IC693CBL304.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 4.9 with 19 reviews

    Technical Specifications for IC693CBL304

BrandGE Fanuc
SeriesSeries 90-30
Part NumberIC693CBL304
TypeCable
PurposePort expansion
StructureContinuous shield
Length1 feet
CompatibilityIC693PCM300 module
FeatureWye adapter
Connector 1st endRight-angle male connector
Connector 2nd endDual-female connector
CatalogAccessories
Maximum number in a systemOne Wye cable per module
Product Lifecycle Status*Discontinued/Obsolete

*The GE Fanuc IC693CBL304 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement IC693CBL304 units instead of migration.

BrandGE Fanuc
SeriesSeries 90-30
Part NumberIC693CBL304
TypeCable
PurposePort expansion
StructureContinuous shield
Length1 feet
CompatibilityIC693PCM300 module
FeatureWye adapter
Connector 1st endRight-angle male connector
Connector 2nd endDual-female connector
CatalogAccessories
Maximum number in a systemOne Wye cable per module
Product Lifecycle Status*Discontinued/Obsolete

*The GE Fanuc IC693CBL304 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement IC693CBL304 units instead of migration.

s

About IC693CBL304

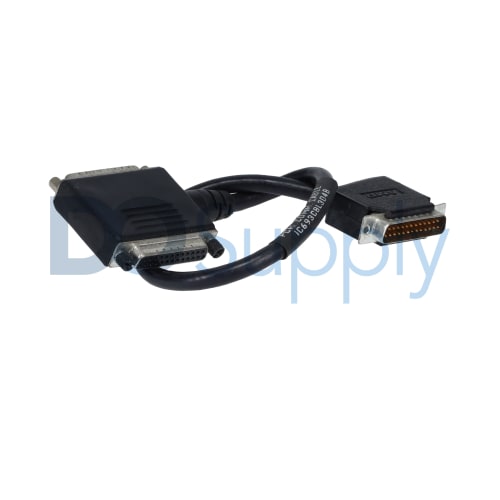

The IC693CBL304 cable is a port expansion (Wye) cable that has been manufactured by the GE Fanuc company. This specific cable has been created to be used specifically with the GE IC693PCM300 module from the same series (GE Series 90-30). Wye cables are used for splitting out 2 serial port connections from the single connection that comes embedded in the host IC693PCM300 module. This cable is included with the module, and it can also be ordered separately from the GE catalog. The GE Fanuc IC693CBL304 port expansion (Wye) cable is used to separate the RS-232 signals from the RS-485 signals. It also makes the Series 90/70 PCM fully compatible with the Series 90/30 PCM. This cable, like all the cables from the series, come with a continuous shielding.







The GE Fanuc IC693CBL304 port expansion (Wye) cable comes in a length of 1 foot and it includes a right-angle male connector on one end. This end is meant to be connected to the PCM module. The opposite end comes with a dual female connector for Port 1 and Port 2. The GE Fanuc IC693CBL304 port expansion (Wye) cable, along with the baseplate that contains the PCM module, must be grounded at the same ground potential. This is very important since incorrect wiring will result in damage to the different equipment involved, including the programmer or the module and all the cables. This cable is particularly important when there are 2 connections required from a single port, this increases the efficiency of both the module and the programmer along with the different equipment involved in the whole application process.



Repair Services for IC693CBL304

Type Lead Time Price Action
Repair Service 2-4 weeks $167cartAdd to Cart

Our highly skilled technicians can repair your IC693CBL304. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for IC693CBL304

Please refer to the manual for more information about the IC693CBL304 such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
IC693CBL304B
IC693CBL304-B, Series B, Rev B Request Quote
