IC693CBL305

Revisions: A B
Description: The GE Fanuc IC693CBL305 Wye Cable is made for the Series 90-30 axis communications coprocessor modules. It has has a maximum cable length of 1 foot and 25-Pin RS-232/RS-485 connectors.
In Stock Ships Today
Request a quote for IC693CBL305

Description:

The GE Fanuc IC693CBL305 Wye Cable is made for the Series 90-30 axis communications coprocessor modules. It has has a maximum cable length of 1 foot and 25-Pin RS-232/RS-485 connectors.



top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: A B

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the IC693CBL305.
Exchange: Exchange credit for your defective unit available.

To speak to a sales representative for pricing & lead time:


Rated 4.8 with 16 reviews

    Technical Specifications for IC693CBL305

BrandGE Fanuc
SeriesSeries 90-30
Part NumberIC693CBL305
Description IC693CBL305 Wye Communication Cable
Cable Length1 Foot
Connector Type25-Pin RS232/RS-485 Connectors
Cable typeWye Cable
ListingThis specification list was created by dosupply.com.
ApplicationCommunications Coprocessor Modules
Wire ShieldYes
Average Weight2.0 Pounds
Cable HousingYes
Conducting Material28 AWG Size Wire
Product Lifecycle Status*Discontinued/Obsolete

*The GE Fanuc - GE IP - Emerson IC693CBL305 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement IC693CBL305 units instead of migration.

BrandGE Fanuc
SeriesSeries 90-30
Part NumberIC693CBL305
Description IC693CBL305 Wye Communication Cable
Cable Length1 Foot
Connector Type25-Pin RS232/RS-485 Connectors
Cable typeWye Cable
ApplicationCommunications Coprocessor Modules
Wire ShieldYes
Average Weight2.0 Pounds
Cable HousingYes
Conducting Material28 AWG Size Wire
Product Lifecycle Status*Discontinued/Obsolete

*The GE Fanuc - GE IP - Emerson IC693CBL305 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement IC693CBL305 units instead of migration.

s

About IC693CBL305

The GE Fanuc IC693CBL305 Wye Cable is a serial communication cable designed to physically separate the GE Series 90-30 communications coprocessor modules' combined serial ports into 2 ports known as Port 1 and Port 2 for ease of wiring. The IC693CBL305 Cable is also used to split out the 2 ADC port connections from the single connector on an ADC module. This cable is supplied with the GE Series 90-30 communications coprocessor modules. The IC693CBL305 Wye Cable is designed to offer physical distance between the serial ports, allowing for convenient space for wiring. The IC693CBL305 Wye Cable is compatible with the Series 90-30 CMM and PCM modules which have Port 1 and Port 2 configured by default as a single connector, and it helps to provide physical separation between these 2 port signals.

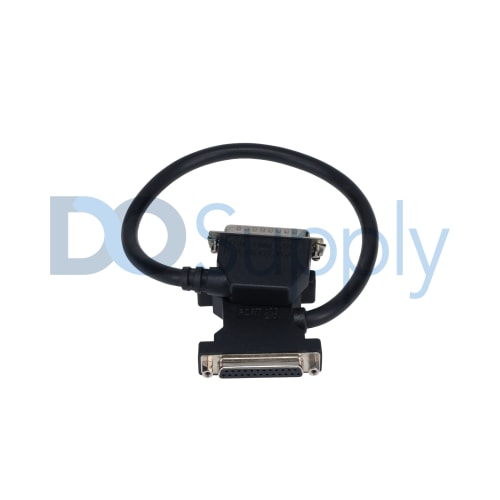

The IC693CBL305 Wye Cable has a maximum cable length of 30.5 centimeters (1 foot), and it has specially shaped connectors on both ends. On one end of the cable is a right-angle shaped connector that connects to the combined serial port of the communications coprocessor modules, and the other end of the cable has dual connectors labelled as the Port 1 and Port 2 connectors. Generally, the IC693CBL305 Wye Cable has a “Y” shape, because one end has a single right-angle connector and the other end is a dual connector. The GE Series 90-30 communication coprocessor modules supports RS-232 (Port 1) and RS-232 or RS-485 (Port 2) applications, and the IC693CBL305 Wye Cable helps to route the Port 1 RS-232 signals and the Port 2 RS-232/485 signals to the designated RS-232/RS-485 25-pin connectors.



Repair Services for IC693CBL305

Type Lead Time Price Action
Repair Service 2-4 weeks $99.75cartAdd to Cart

Our highly skilled technicians can repair your IC693CBL305. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for IC693CBL305

Please refer to the manual for more information about the IC693CBL305 such as the wiring diagrams, data sheets, firmware information and migration or obsolescence details.

Revision Part # Also Known as Availability
IC693CBL305A
IC693CBL305-A, Series A, Rev A Request Quote
IC693CBL305B
IC693CBL305-B, Series B, Rev B Request Quote
