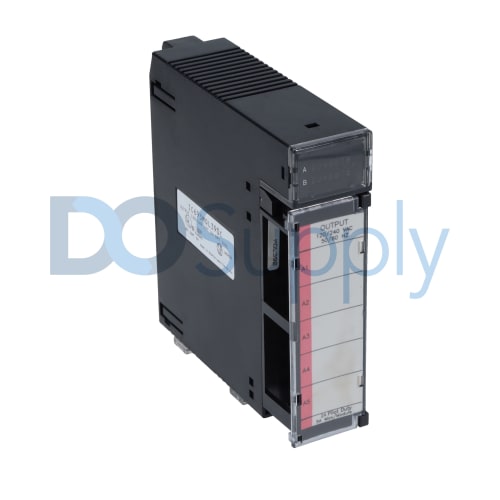

IC693MDL390

The IC693MDL390 is a Five (5) channel discrete output module that belongs to the Series 90-30 product category of Programmable Logic Controllers (PLC). Formerly manufactured by GE Fanuc now under Emerson Automation, this module mainly features individually isolated output channels, providing an output voltage range of 85-264 VAC and frequency of 50/60 Hz. Each output channel generates a maximum of 2 Amperes per point while the maximum output current per module at 45 Degree Celsius is 5 Amperes while a maximum of 2 Amperes can be generated at an operating temperature of 60 Degree Celsius. Between each output point, the isolation rating is 500 Volts while field side to logic side isolation is rated at 1500 VAC. The output module generates a maximum inrush current of 25 Amperes for a single cycle while the minimum load current is 100 mA. The maximum output voltage drop is measured at 1.5 Volts and the maximum leakage current are 3 mA at 120 VAC and 6 mA at 240 VAC. The module’s output ON state transition delay duration is 1 ms while for OF response, the rated delay is ½ cycle. This module has a backplane current draw of 110 mA when all outputs are energized. Each output channel is provided with 3 A-rated fuses for protection. In addition, Resistor - Capacitor snubber circuits are also provided for eliminating transient electrical noise. It is also provided with individual LED status indicators that depict the energization state of each output and a single “F” LED intended for fuse indicator is also provided for reporting of a blown fuse.
