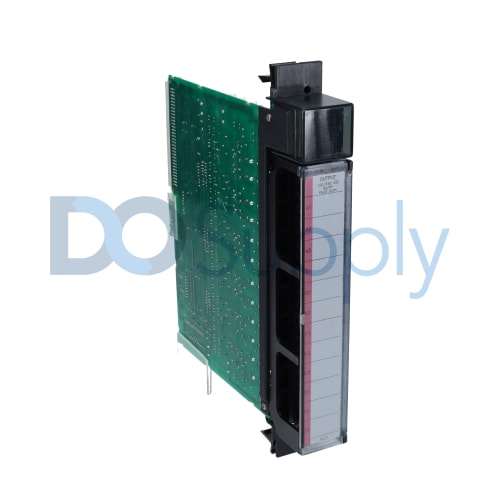

IC697MDL341

Rated 5 with 8 reviews

Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for GE Fanuc.

top legal disclaimer
top legal disclaimer

credit cards accepted
better business bureau

IC697MDL341

Revisions: D Ser 0 C D E
Description: The IC697MDL341 Discrete Output Module is manufactured by GE Fanuc as member of Series 90-70. This module has a rated voltage of 120 to 240 Volts AC and it comes with 12 isolated points which ensures that various phases can be used on an AC power supply.
In Stock Ships Today
Request a quote for IC697MDL341

Description:

The IC697MDL341 Discrete Output Module is manufactured by GE Fanuc as member of Series 90-70. This module has a rated voltage of 120 to 240 Volts AC and it comes with 12 isolated points which ensures that various phases can be used on an AC power supply.


Preowned

Includes a 1-Year DO Supply warranty.

DO Supply is not an authorized distributor for GE Fanuc.

top legal disclaimer
disclaimer
credit cards
better business bureau
Revisions: D Ser 0 C D E

Warranty: 1 year DO Supply Warranty Included
Shipping: Worldwide shipping via DHL, UPS, Fedex, and TNT
Repairs: We offer repair service for the IC697MDL341.
Exchange: Exchange credit for your defective unit available.
Conditions: We sell preowned surplus and refurbished parts.

To speak to a sales representative for pricing & lead time:


Rated 5 with 8 reviews

    Technical Specifications for IC697MDL341

BrandGE Fanuc
SeriesSeries 90-70
Part NumberIC697MDL341
BrandGE Intelligent Platforms/GE Fanuc
Product TypeDiscrete Output Module
Rated Voltage120/240 V AC
Outputs12
Output Current/Point2 A
Output Current/Module16 A
Current Required0.25 A
Frequency47-63 Hz
DC Power No
AC PowerYes
LED IndicatorsYes
BrandGE Fanuc
SeriesSeries 90-70
Part NumberIC697MDL341
BrandGE Intelligent Platforms/GE Fanuc
Product TypeDiscrete Output Module
Rated Voltage120/240 V AC
Outputs12
Output Current/Point2 A
Output Current/Module16 A
Current Required0.25 A
Frequency47-63 Hz
DC Power No
AC PowerYes
LED IndicatorsYes
s

About IC697MDL341

The IC697MDL341 Output Module is a discrete output module is a product of GE Fanuc, and it belongs to GE Series 90-70. It operates on a voltage rating of 120 to 240 Volts AC and it has 12 isolated points that ensure that different phases are used on the AC power supply. The module features 2 Amps of current capacity for each output point as well as a high inrush capacity of 10 times the rated current therefore allowing for a notable range of incandescent and inductive loads. Each of the outputs is fused with a replaceable fuse rated at 3.15 Amps. The GE Fanuc IC697MDL341 Output Module has LED indicators that show the on and off status for every output point on the circuit’s logic side. Additionally, this module has an LED indicator for displaying the status of the different fuses on the module. When any of the fuses blow, the LED indicator will turn on to show it.







The IC697MDL341 Output Module is keyed automatically to ensure the correct replacement by using the same type of module on the ground. The operators can configure the input and output references without using the DIP switches and jumpers. The GE Fanuc IC697MDL341 Output Module is compatible with and works with a wide range of load devices such as indicators, solenoids, and motor starters. Each point has a current rating of 2 Amps that applies to current long-term aptitude for every point. The overall dissipation of heat within this module limits the total current to 16 Amps. The output can rapidly execute surge current by exceeding the continuing current rating. Surges are repeated depending on the current rating of this module and on the percentage of time when the device is powered on or in the duty cycle.



Repair Services for IC697MDL341

Type Lead Time Price Action
Repair Service 2-4 weeks Askenvelope Get Quote

Our highly skilled technicians can repair your IC697MDL341. All of our repairs come with a 1 Year DO Supply Warranty. Please contact us for additional information about our repair process.

Revisions for IC697MDL341

Please refer to the manual for more information about the IC697MDL341 such as the wiring diagrams, data sheets and migration or obsolescence details.

Revision Part # Also Known as Availability
IC697MDL341 D
IC697MDL341-D, Series D, Rev D Request Quote
IC697MDL341 Ser 0
IC697MDL341-0, Series 0, Rev 0 Request Quote
IC697MDL341C
IC697MDL341-C, Series C, Rev C Request Quote
IC697MDL341D
IC697MDL341-D, Series D, Rev D Request Quote
IC697MDL341E
IC697MDL341-E, Series E, Rev E Request Quote
Common misspellings:
  • 1C697MDL341
  • IC697MD1341
  • IC697MDL3A1
  • IC697MDL34l
  • IC697MDL341
