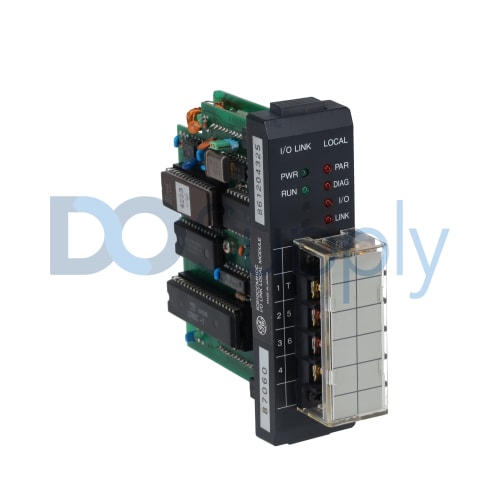

GE Fanuc Emerson Series One IC610CCM110

Product image is representative; revision or series may vary. Contact us to request a specific version.

IC610CCM110

|
Need a Specific Revision?

The IC610CCM110 is a local I/O link module developed by GE Fanuc Emerson, suitable for Series One and Series One Plus applications. This module facilitates remote I/O operations and is mounted on a CPU rack.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for IC610CCM110

ManufacturerGE Fanuc Emerson
Product TypeI/O Link Local Module
Product LineSeries One
Part NumberIC610CCM110
Weight2.00 lbs (0.91 kg)
RackCPU Rack
FunctionRemote I/O Applications
Connected ModuleI/O Link Remote Module in I/O Rack
Connector Cable1 Twisted-Pair Cable
Maximum Supported I/O112 I/O (Series One), 168 I/O (Series One Plus)
Ambient Operating Temperature32 to 140 degrees Fahrenheit
Ambient Storage Temperature14 to 158 degrees Fahrenheit
Relative Humidity (Operation and Storage)5 to 95% (Non-Condensing)
Request a Repair

The IC610CCM110 I/O link local module belongs to the GE Fanuc Emerson Series One family, including the Series One Plus range. This module serves as an integral component for remote I/O applications, designed to be installed in a CPU rack.

It connects to an I/O link remote module within an I/O rack through a single twisted-pair cable, ensuring effective communication. This module supports a maximum of 112 input/output points in Series One configuration, while Series One Plus can accommodate up to 168 I/O points, providing flexibility for various applications.

The device operates reliably in ambient temperatures ranging from 32 to 140 degrees Fahrenheit, catering to different operational environments. For storage, it can handle conditions from 14 to 158 degrees Fahrenheit. Additionally, the module is designed to function in environments with relative humidity levels from 5% to 95% without condensation, making it versatile for both operation and storage.
