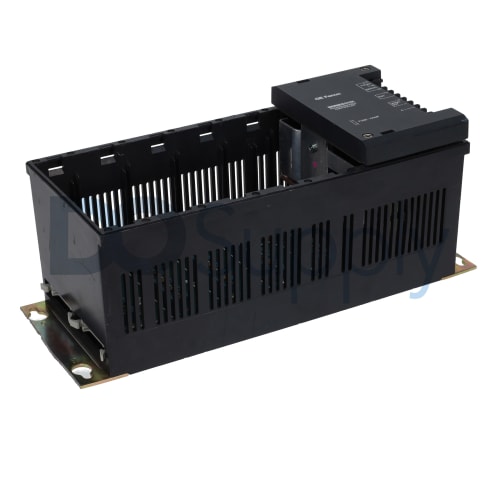

GE Fanuc Emerson Series One IC610CHS110

Product image is representative; revision or series may vary. Contact us to request a specific version.

IC610CHS110

|
Need a Specific Revision?

The IC610CHS110 is a PLC rack designed within the GE Fanuc Emerson Series One. It utilizes a 115V AC input voltage and supports up to five modules for comprehensive control applications.

In Stock
Ships from Raleigh, NC
2 Year DO Supply Warranty
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for IC610CHS110

ManufacturerGE Fanuc Emerson
Product TypePLC Rack
Product LineSeries One
Part NumberIC610CHS110
Weight2.00 lbs (0.91 kg)
Input Voltage115V AC
Frequency47-63 Hz
Maximum Load Current0.8A
Output Current at 5V DC1.4A
Output Current at 9V DC0.8A
Output Current at 24V DC0.5A
Slot Capacity5 Slots
Module Capacity5 Modules
CPU ModuleSupported in slot next to power supply
Request a Repair

The IC610CHS110 is a PLC rack from GE Fanuc Emerson's Series One, tailored for automating industrial processes. This PLC rack is rated for an input voltage of 115V AC, functioning efficiently at a frequency range of 47 to 63 Hz. It can accommodate a maximum load current rating of 0.8 Amps, ensuring stable performance across operations.

The GE Fanuc Emerson IC610CHS110 PLC rack is designed to hold up to five slots, allowing the installation of five different modules. It supports various output current ratings, with 1.4 Amps available at 5V DC, 0.8 Amps at 9V DC, and 0.5 Amps at 24V DC. A CPU module can be installed in the designated slot next to the power supply to enhance system functionality, simplify setup, and streamline configurations to meet specific automation needs.
