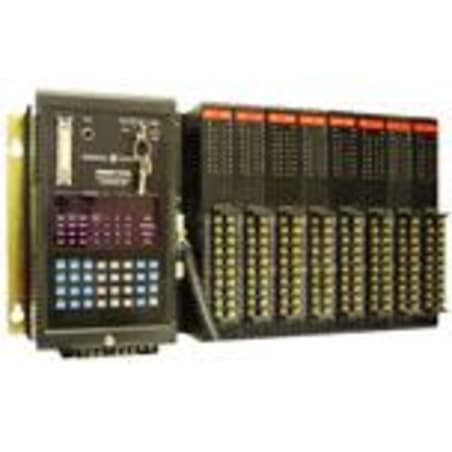

GE Fanuc Emerson Series Three IC630CHS304

Product image is representative; revision or series may vary. Contact us to request a specific version.

IC630CHS304

|
Need a Specific Revision?

The IC630CHS304 is a base unit from the GE Fanuc Emerson Series Three, specifically designed for versatile applications. With capacity for up to 400 I/O points, it features four available slots, making it adaptable for various input and output configurations. It operates at power inputs of either 115V AC or 230V AC, facilitating its usability in different environments.

Call for an immediate quote
2 Year DO Supply Warranty
Available
Ships from Raleigh, NC
Not an Authorized Distributor: DO Supply is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All of our products come with DO Supply's 2-year warranty.
Learn more

Technical specifications for IC630CHS304

ManufacturerGE Fanuc Emerson
Product TypeBase Unit
Product LineSeries Three
Part NumberIC630CHS304
Weight1.75 lbs (0.79 kg)
Number of I/O Slots4 Slots
Power Input115V AC or 230V AC
Mounting TypeWall Mount
Maximum I/O PointsUp to 400 I/O
Min. Operating Temperature0°C
Max. Operating Temperature60°C
Min. Storage Temperature-40°C
Max. Storage Temperature85°C
Min. Relative Humidity5% (Non-Condensing)
Max. Relative Humidity95% (Non-Condensing)
Installation Altitude1000m
Request a Repair

The IC630CHS304 is a base unit belonging to GE Fanuc Emerson's Series Three. This unit is structured to support a range of operational requirements, boasting four slots for I/O connections. With a capacity of up to 400 I/O points, this base unit adapts effectively to diverse applications.

The power input options for the IC630CHS304 include both 115V AC and 230V AC, adding to its versatility across different electrical configurations. The form factor allows for wall mounting, which is convenient for space management and installation processes. Operationally, this unit maintains performance in temperatures from 0°C to 60°C, ensuring reliable function across general industrial environments.

For storage, the unit can endure a temperature spectrum between -40°C and 85°C, providing resilience in harsher conditions. When it comes to humidity, it functions within conditions of 5% to 95% relative humidity without condensation, ensuring that environmental changes do not adversely affect its operations. Additionally, this unit supports installations at an altitude of up to 1000 meters, reinforcing its adaptability for various applications and deployment scenarios.
