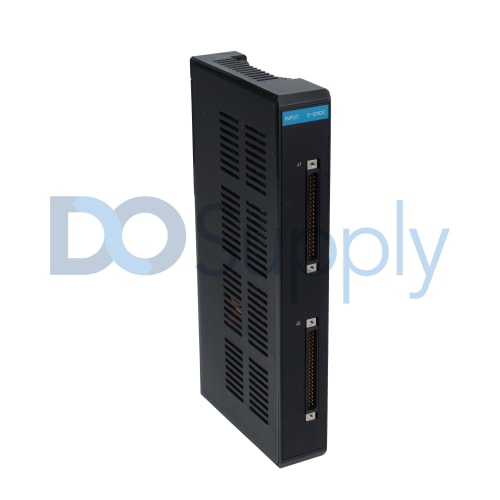

Product image is representative; revision or series may vary. Contact us to request a specific version.
IC630MDL303
The GE Fanuc Emerson IC630MDL303 is an input module designed for application with Series Three PLCs. This I/O module facilitates a connection of up to 32 inputs and ensures compatibility with associated control systems.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for IC630MDL303
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | I/O Module |
| Product Line | Series Three |
| Part Number | IC630MDL303 |
| Weight | 2.00 lbs (0.91 kg) |
| Module Type | Input Module |
| Compatibility | Series Three PLCs |
| Inputs | 32 |
| Current Consumption at 5V DC | 130 mA |
| Current Consumption at 12V DC | 400 mA |
| ON-State Input Current | 2 to 13 mA |
| Operating Temperature at Outside of Rack | 0 to 60 degrees Celsius |
| Humidity | 5 to 95%, noncondensing |
| ON-State Voltage | 6.8V DC |
| OFF-State Voltage | 12.2V DC |
The IC630MDL303 model from GE Fanuc Emerson is an input module designed as part of the Series Three product line. It connects seamlessly with Series Three Programmable Logic Controllers (PLCs) and is engineered to support a maximum of 32 inputs, providing sufficient capacity for various control applications.
Within operational parameters, this input module demonstrates a current consumption requirement of 130 mA when powered at 5V DC. It consumes 400 mA at 12V DC for optimal performance across different setups. In the ON state, the input current ranges from 2 to 13 mA, ensuring efficient input processing. Voltage specifications detail that the ON-state voltage is set at 6.8V DC, while the OFF-state voltage is sufficient at 12.2V DC, reflecting the necessary thresholds for signaling within control systems.
The operational environment for the IC630MDL303 input module is rated for temperatures between 0 and 60 degrees Celsius when mounted outside of a rack. To further reinforce its versatility, this module maintains humidity tolerances between 5% and 95%, ensuring reliable operation in diverse conditions without the risk of condensation affecting performance. Overall, the IC630MDL303 serves as a robust component for input operations in a range of industrial applications.
