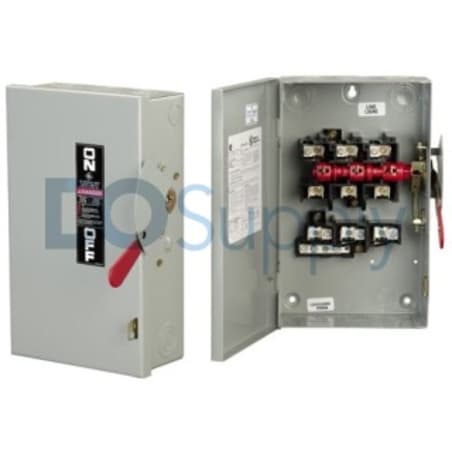

Product image is representative; revision or series may vary. Contact us to request a specific version.
TG3224
The TG3224 model, part of the GE Fanuc Emerson Spec-Setter Safety Switches, is a fusible general duty safety switch. This device operates at a maximum of 240 VAC and is rated for a current of up to 200 A, ideal for varied electrical applications.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TG3224
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Fusible General Duty Safety Switch |
| Product Line | Spec-Setter Safety Switches |
| Part Number | TG3224 |
| UPC | 783164008555 |
| Maximum Operating Frequency | 60 Hz |
| Minimum Operating Frequency | 50 Hz |
| Number of Poles | 2 Poles |
| AC Voltage Rating | 240 VAC |
| Rated Short Circuit Current | 100 kA |
| Rated Current | 200 A |
| Number of Wires | 3 Wires |
| Mounting Type | Surface Mount |
| Enclosure Type | NEMA 1 |
| Operating Temperature Range | 60 °C to 75 °C |
The GE Fanuc Emerson TG3224 is a fusible general duty safety switch. This model is proficient in handling an AC voltage rating of 240 VAC and possesses a significant rated current of 200 A, making it effective for a wide range of applications. It includes two poles and supports a three-wire configuration, ensuring versatility in installation.
The device functions effectively across a frequency spectrum ranging from a minimum of 50 Hz to a maximum of 60 Hz. With a rated short circuit current of 100 kA, it ensures substantial protection against overcurrents, enhancing system safety. Designed for surface mounting, the TG3224 can be situated in various locations, adapting to different installation environments.
The safety switch features a NEMA 1 rated enclosure, indicating that it is suitable for indoor applications where indirect contact and some dust exposure may occur. Additionally, it is engineered to operate within a temperature range of 60 °C to 75 °C, further extending its usability in various operational conditions. The TG3224 serves as a reliable solution for anyone needing a robust safety switch in their electrical systems.
