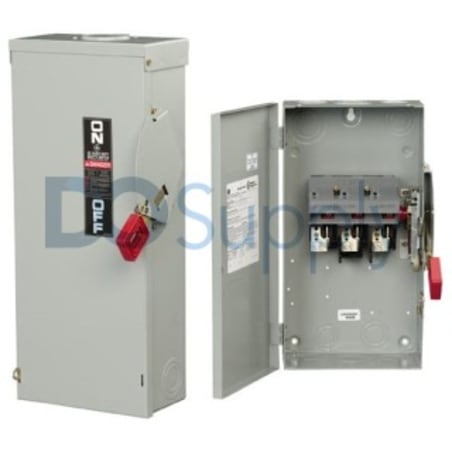

TH3362R
The TH3362R from GE Fanuc Emerson is a robust heavy-duty safety switch designed for demanding applications. This device operates at a rated voltage of 600 V AC and can handle a maximum current of 60 A across its three-pole configuration.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for TH3362R
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Heavy Duty Safety Switch |
| Product Line | Spec-Setter Safety Switches |
| Part Number | TH3362R |
| UPC | 783164009101 |
| Rated Voltage | 600 V AC |
| Rated Current | 60 A |
| Number of Wires | 3 Wires |
| Number of Poles | 3 Poles |
| 480 VAC, NEC Std, 1-Phase HP Rating | 5 Hp |
| 480 VAC, NEC Std, 3-Phase HP Rating | 15 Hp |
| 480 VAC, Time Delay, 1-Phase HP Rating | 20 Hp |
| 480 VAC, Time Delay, 3-Phase HP Rating | 30 Hp |
| HP Rating at 125 VDC | 5 Hp |
| HP Rating at 250 VDC | 10 Hp |
The GE Fanuc Emerson TH3362R is classified as a heavy-duty safety switch suitable for a variety of industrial uses. It supports a rated voltage of 600 V AC and a current rating of 60 A, making it fit for robust operations. This switch includes three wires and features a three-pole design to cater to diverse electrical configurations.
When applied in 480 VAC conditions, this switch meets NEC standards and can control up to 5 horsepower in single-phase setups and 15 horsepower in three-phase setups. If time delay functionality is applied, the switch can manage 20 horsepower for single-phase operations and extend to 30 horsepower for three-phase applications, offering versatile operational capabilities.
For direct current applications, the device supports a rating of 5 horsepower at 125 VDC and accommodates 10 horsepower at 250 VDC. Its construction and specifications make the TH3362R a reliable solution for safety switching in demanding electrical environments, ensuring efficient and secure operation.
