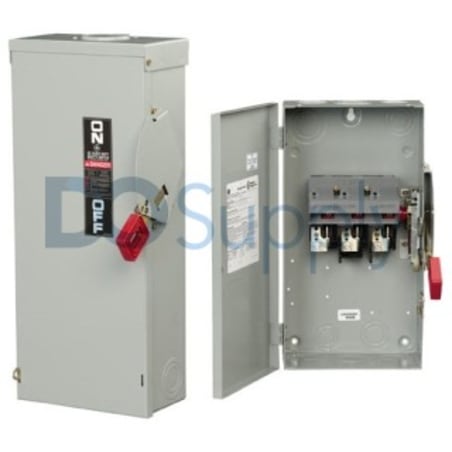

THN3365R
The THN3365R from GE Fanuc Emerson is a safety switch designed for diverse heavy-duty applications. Capable of handling a nominal voltage of 600 Volts AC and a robust current capacity of 400 Amperes, it provides reliable performance and safety in various settings.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for THN3365R
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Safety Switch |
| Product Line | Spec-Setter Safety Switches |
| Part Number | THN3365R |
| UPC | 783164011371 |
| Number of Wires | 3 Wires |
| Nominal Voltage | 600 Volts AC |
| Duty Rating | Heavy-Duty |
| Current Capacity | 400 Amperes |
| Enclosure Rating | NEMA 3R |
| Switch Style | Non-Fusible |
| Power Rating | 50 Horsepower at 250 Volts DC, 125 Horsepower at 240 Volts AC, 250 Horsepower at 480 Volts AC, and 350 Horsepower at 600 Volts AC |
| Number of Poles | 3 Poles |
| Approvals | UL-listed and CSA-approved |
| Rated Phase | 3-Phase |
| Current Breaking Capacity | 200 Kiloamperes at 600 Volts AC |
The GE Fanuc Emerson THN3365R safety switch is built to excel in demanding environments. It operates with a nominal voltage of 600 Volts AC and accommodates up to 400 Amperes of current. The switch is recognized for its heavy-duty performance, making it suitable for various industrial requirements.
With a NEMA 3R rated enclosure, the switch is constructed to withstand harsh conditions while maintaining its integrity. It features a non-fusible switch style, allowing easy operation without the need for additional fuse protection. The THN3365R is designed for a three-phase system and includes three poles.
This switch can handle power ratings of up to 350 horsepower at 600 Volts AC, 250 horsepower at 480 Volts AC, 125 horsepower at 240 Volts AC, and 50 horsepower at 250 Volts DC, providing versatility for different applications. Its current breaking capacity is substantial, rated at 200 kiloamperes at 600 Volts AC, ensuring it can efficiently interrupt large fault currents.
Certified by UL and CSA, this safety switch meets stringent safety and quality standards, offering peace of mind for installation and use in various operational scenarios.
