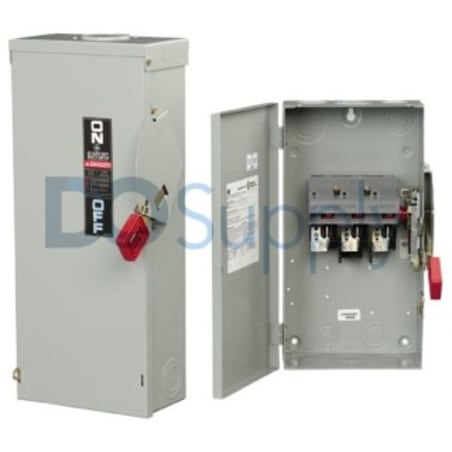

Product image is representative; revision or series may vary. Contact us to request a specific version.
THN3366
The THN3366 model from GE Fanuc Emerson serves as a non-fusible safety switch within the Spec-Setter series. This robust unit can handle a voltage rating of 600 volts AC with a current rating of 600 amperes, and it boasts a horsepower capacity of up to 500 HP.
-
We sell industrial automation parts backed by our free 2-Year DO Supply Warranty.
-
Same-day domestic and fast international shipping with UPS, FedEx, DHL, and more.
-
AMEX, Visa, MasterCard, Discover, wire transfer, net terms, and more.
-
Repairs and exchanges are available for all automation products.
- Reseller Options
Drop shipping, blind shipping, and account shipping with no extra fees.
Technical specifications for THN3366
| Manufacturer | GE Fanuc Emerson |
|---|---|
| Product Type | Non-Fusible Safety Switch |
| Product Line | Spec-Setter Safety Switches |
| Part Number | THN3366 |
| UPC | 783164133172 |
| Horsepower Rating | 500 HP @ 600V |
| Short Circuit Rating | 200 kA @ 600V |
| Actuator Type | Handle Operated |
| Fusibility | Non-Fusible |
| Terminal Type | Lug Terminals |
| Mounting Type | 3-Point Self-Leveling |
| Frequency | 50/60 Hz |
| Current Rating | 600A |
| Voltage Rating | 600V AC |
| Number of Poles | 3 Poles |
| Phase | 3 Phase |
The GE Fanuc Emerson THN3366 is a non-fusible safety switch optimized for high-performance electrical systems. With a robust voltage rating of 600 volts AC, this switch supports a maximum continuous current of 600 amperes. This unit is engineered for substantial power applications, rated for up to 500 horsepower at 600 volts.
This safety switch is equipped with three poles, making it suitable for three-phase power configurations essential in numerous industrial applications. The configuration includes a short circuit rating of 200 kA at 600 volts, ensuring adequate protection under fault conditions and minimizing potential hazards.
The THN3366 features lug terminals for reliable electrical connections, facilitating straightforward installation and maintenance routines. A handle-operated actuator provides user-friendly operation, which enhances accessibility in various working environments.
For mounting, this switch uses a 3-point self-leveling mechanism, ensuring that it securely attaches to control systems and remains reliable during operations. Operating frequencies range from 50 to 60 Hz, accommodating different electrical system requirements. The design and implementation of the THN3366 cater to safety and performance needs in critical circuit management applications.
